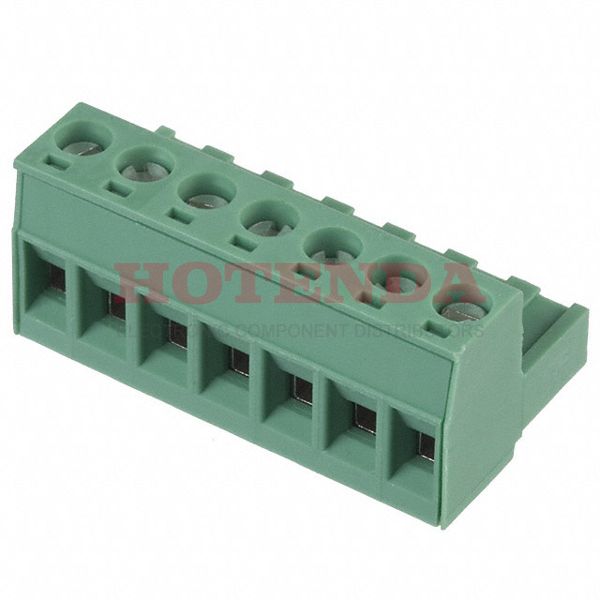

Name: 1912016
Brand: Phoenix Contact
SKU: 1912016
Price: 8.67000 USD
Availability: InStock

new

1912016

Manufacturer part number:1912016

Manufacturer:Phoenix Contact

Description:1912016 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1912016 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	11.830001g
Packaging	Bulk
Published	2001
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, UL 94V0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	16A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	16A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	7
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	7
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	15mm
Width	35.56mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1912016 Product Details

1912016 Overview

Packaging is Screw, Socket.Its mounting type is Free Hanging (In-Line).Packaging for the product is carried out via a Bulk case.It belongs to the COMBICON MSTB Series of products.Additionally, there are features like PA, UL 94V0, just to name a few.There are a number of advantages to its Retention Latches (Non-Wire Side) feature.The part is mounted by Free Hanging.There are many benefits shared between this part and other Plug, Female Sockets products.
