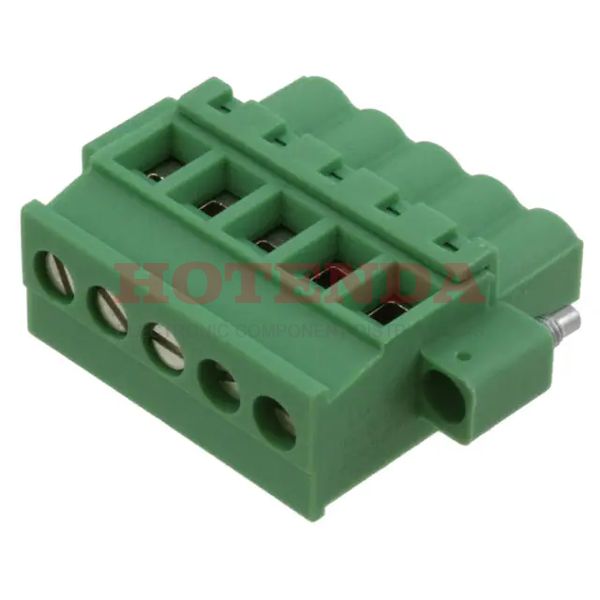

Name: 1913099
Brand: Phoenix Contact
SKU: 1913099
Price: 6.28000 USD
Availability: InStock

new-10%

1913099

Manufacturer part number:1913099

Manufacturer:Phoenix Contact

Description:1913099 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1913099 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	11.460011g
Packaging	Bulk
Published	2001
Series	COMBICON MVSTBW
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Insulation Height	1.024 26.01mm
Reach Compliance Code	unknown
Current Rating	10A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	16A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	5
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Height	26mm
Width	12.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1913099 Product Details

1913099 Overview

There is a mounting type of Free Hanging (In-Line) for this device.Bulk cases are used to package the product.COMBICON MVSTBW Series product.Many aspects of its Mating Flange, Retention Latches (Non-Wire Side) feature increase its effectiveness.Free Hanging represents the mounting point for the part.Other Plug, Female Sockets products benefit from this part as well.
