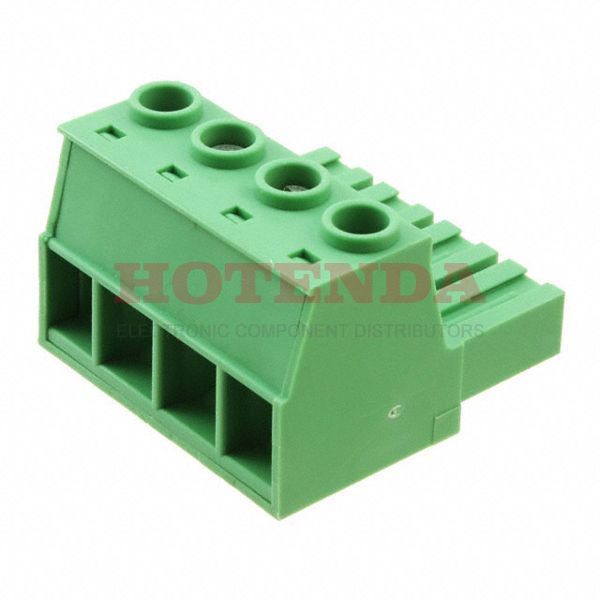

Name: 1913523
Brand: Phoenix Contact
SKU: 1913523
Price: 19.81000 USD
Availability: InStock

new

1913523

Manufacturer part number:1913523

Manufacturer:Phoenix Contact

Description:1913523 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1913523 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Silver
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	33.190006g
Packaging	Bulk
Published	2002
Series	COMBICON PC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	1kV
Pitch	0.400 10.16mm
Orientation	Straight
Depth	27.55mm
Insulation Height	1.085 27.55mm
Current Rating	41A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	UL
Voltage	600V
Number of Levels	1
Current	50A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	8 AWG
Number of Poles	4
Number of Decks	1
Wire Gauge or Range - AWG	8-20 AWG
Voltage - IEC	1kV
Torque - Screw	1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.75-10mm2
Wire Strip Length	12mm
Current - IEC	41A
Screw Size	M4
Height	39mm
Length	39.68mm
Width	39mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1913523 Product Details

1913523 Overview

The product comes in a package of Screw, Socket.Free Hanging (In-Line) is the mounting type for the device.Packaging for the product is carried out via a Bulk case.There is a product in the COMBICON PC Series.The part is mounted by Free Hanging, Plug-In.There are many benefits that this part shares with other Plug, Female Sockets products as well.
