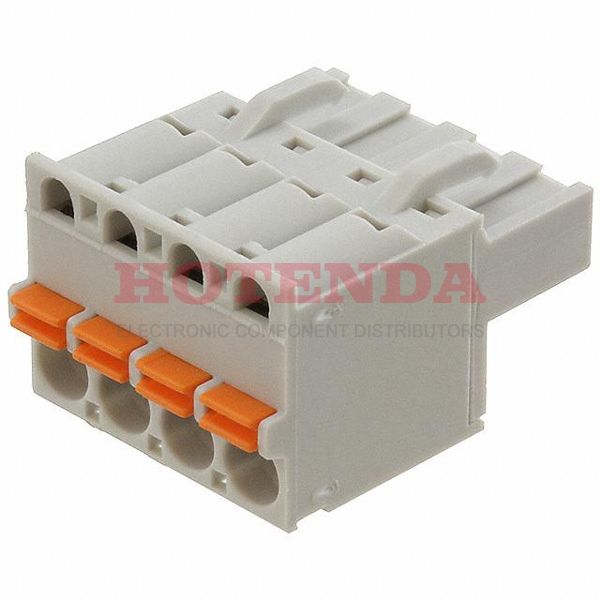

Name: 1921900
Brand: Phoenix Contact
SKU: 1921900
Price: 5.59000 USD
Availability: InStock

new-10%

1921900

Manufacturer part number:1921900

Manufacturer:Phoenix Contact

Description:1921900 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1921900 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	7.019994g
Packaging	Bulk
Published	2010
Series	COMBICON FKCT
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	4
Color	Gray
Voltage - Rated	250V
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Housing Color	Grey
Voltage	300V
Number of Levels	1
Current	12A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	12 AWG
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	10A
Voltage - IEC	630V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Height	20.1mm
Length	15mm
Width	25.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1921900 Product Details

1921900 Overview

Currently, it is packaged in Socket.This device is mounted in the Free Hanging (In-Line) position.To package the product, we use a Bulk case.A product of the COMBICON FKCT Series, it belongs to the range of products of that series.A number of features make it more powerful because of its Retention Latches (Non-Wire Side) feature.Free Hanging represents the mounting point for the part.Other Plug, Female Sockets products benefit from this part as well.
