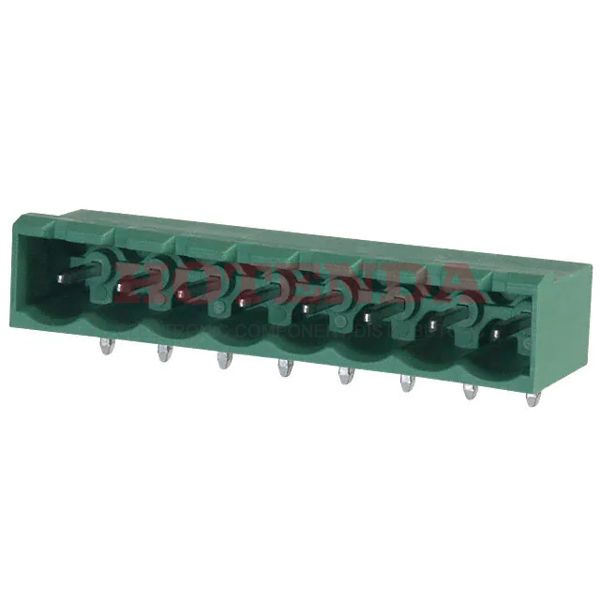

1923924

1923924

1923924

Phoenix Contact

1923924 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1923924 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 2.799997g
PackagingBulk
Published 2001
Series COMBICON MSTBA
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 250V
Additional FeaturePA, UL 94V0
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating16A
Termination Style Solder
Approval Agency CB, UL, VDE
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 16A
Number of Levels 1
Current 16A
Number of Decks 1
Voltage - IEC 400V
Number of Ways 8
Safety Approval UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 8
Length 42.64mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:2264 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.13000$3.13
10$3.04500$30.45
50$2.84620$142.31
100$2.61850$261.85
250$2.41928$604.82
500$2.30544$1152.72

1923924 Product Details

1923924 Overview


There is a Through Hole mounting type for the device.We pack the product in a Bulk case.Specifically, it is one of the products in the COMBICON MSTBA Series.There are also features like PA, UL 94V0, just to name a few.There is a mounting hole at Through Hole.

1923924 Features


COMBICON MSTBA series

1923924 Applications


There are a lot of Phoenix Contact 1923924 Terminal Blocks applications.

  • Medical technology
  • Blowers
  • Electrical substations
  • Refrigeration control
  • Embedded systems
  • Energy efficient lighting (LED)
  • Transportation
  • Automotive Electronics
  • LED municipal outdoor and street lighting
  • Variable speed/frequency drivers
