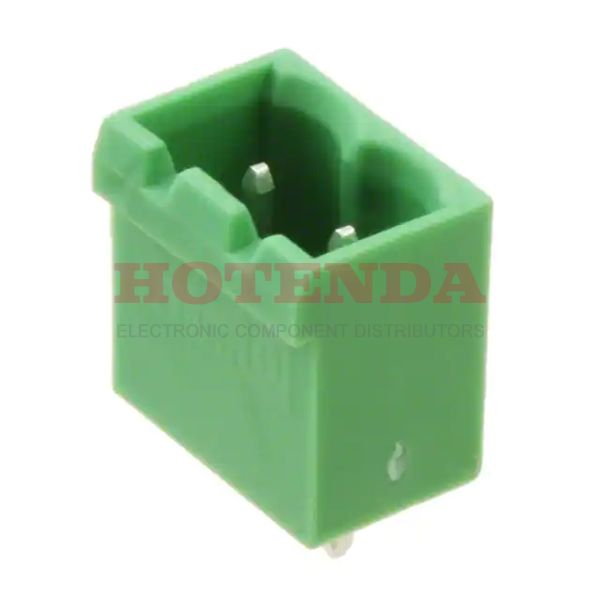

Name: 1924305
Brand: Phoenix Contact
SKU: 1924305
Price: 0.78000 USD
Availability: InStock

new-10%

1924305

Manufacturer part number:1924305

Manufacturer:Phoenix Contact

Description:1924305 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1924305 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	829.988989mg
Packaging	Bulk
Published	2001
Series	COMBICON MSTBVA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	STANDARD: UL 94V-0, PA
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.472 12.00mm
Current Rating	16A
Termination Style	Solder
Approval Agency	CB, VDE, cULus
Voltage	300V
Contact Tail Length	0.154 3.90mm
Number of Levels	1
Current	16A
Voltage - UL	300V
Number of Decks	1
Voltage - IEC	400V
Number of Ways	2
Safety Approval	CB; CCA; CUL; EAC; UL; VDE
Header Orientation	Vertical
Number of Positions Per Level	2
Fastening Method	CONNECTOR
Height	12.16mm
Length	8.6mm
Width	15.9mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1924305 Product Details

1924305 Overview

This product is packaged in a Plug cartonThe mounting type of the device is Through Hole.This product is packaged in a case marked Bulk.It belongs to the COMBICON MSTBVA Series of products.As well as STANDARD: UL 94V-0, PA, to name a few.The part is mounted by Through Hole.The benefts of this part are similar to those of other Header, Male Pins, Shrouded (4 Side) products.
