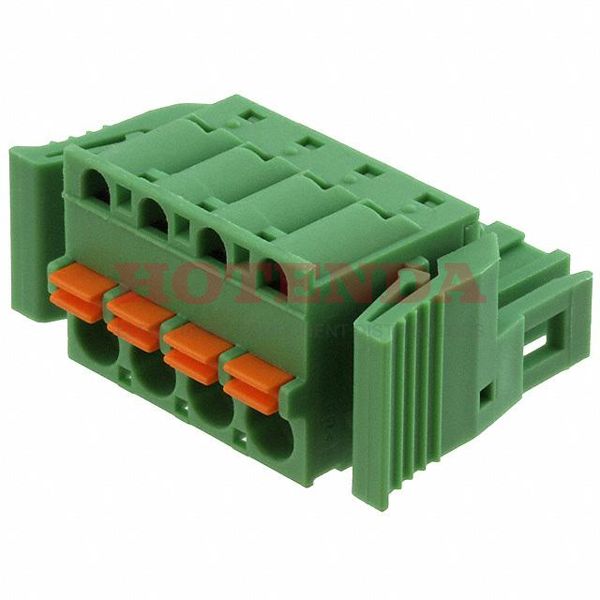

Name: 1925715
Brand: Phoenix Contact
SKU: 1925715
Price: 7.69000 USD
Availability: InStock

new-10%

1925715

Manufacturer part number:1925715

Manufacturer:Phoenix Contact

Description:1925715 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1925715 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	7.829997g
Packaging	Bulk
Published	2003
Series	COMBICON FKC
Feature	Latch Lock, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screwless - Push-In Spring
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Number of Positions Per Level	4
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	25.1mm
Length	15mm
Width	33.74mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1925715 Product Details

1925715 Overview

This product is packaged in a Socket box.A Free Hanging (In-Line) mounting type is specified for the device.An Bulk case is utilized for packaging the product.As a product of the COMBICON FKC Series, it can be found in this category.Its Latch Lock, Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.Part Free Hanging is mounted to the part.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
