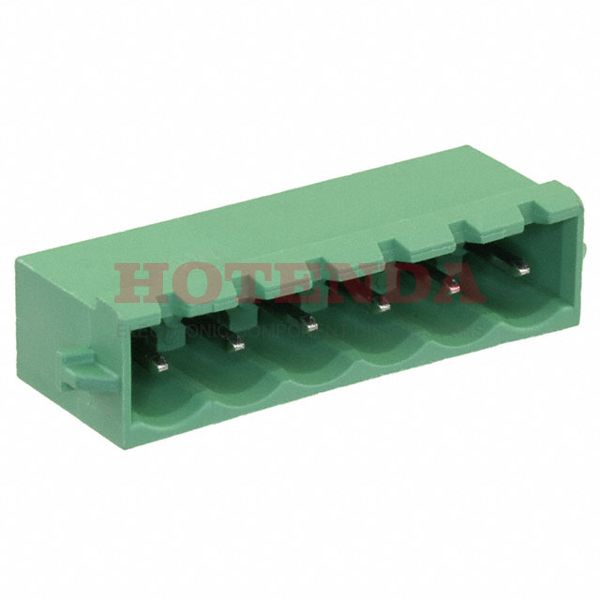

Name: 1926057
Brand: Phoenix Contact
SKU: 1926057
Price: 2.86000 USD
Availability: InStock

new-10%

1926057

Manufacturer part number:1926057

Manufacturer:Phoenix Contact

Description:1926057 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1926057 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	2.609999g
Packaging	Bulk
Published	2003
Series	COMBICON MSTBA
Feature	Locking Ramp
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	6
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	250V
Additional Feature	PBT, UL 94V0
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	400V
Number of Ways	6
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	6
Length	12mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1926057 Product Details

1926057 Overview

Mounting type Through Hole is selected for the device.The product is packaged in a Bulk case.Specifically, it is one of the products in the COMBICON MSTBA Series.Additionally, there are other features, such as PBT, UL 94V0.As a result of its Locking Ramp feature, it possesses a great deal of power.Through Hole represents the mounting point for the part.
