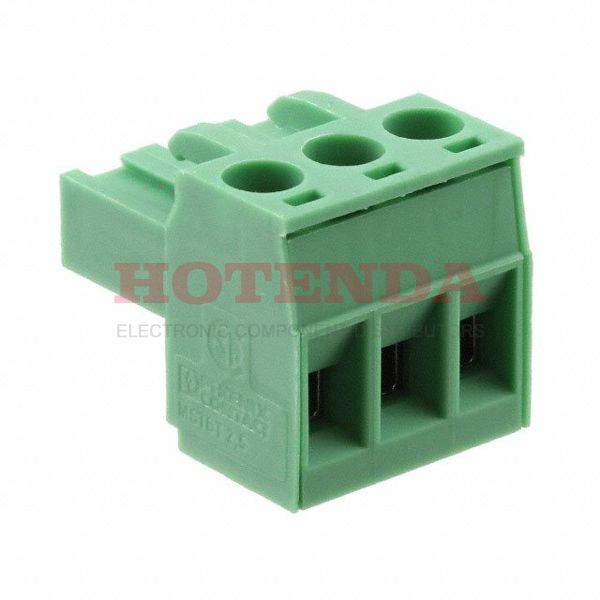

Name: 1926248
Brand: Phoenix Contact
SKU: 1926248
Price: 5.27000 USD
Availability: InStock

new-10%

1926248

Manufacturer part number:1926248

Manufacturer:Phoenix Contact

Description:1926248 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1926248 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	5.080008g
Packaging	Bulk
Published	2011
Series	COMBICON MSTBT
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, UL 94V0
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	6.2mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	16A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	3
Voltage	300V
Max Current Rating	16A
Number of Levels	1
Current	16A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	15mm
Length	6.6mm
Width	18.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1926248 Product Details

1926248 Overview

It comes in Screw, Socket packaging.Free Hanging (In-Line) is the mount type.We pack the product in a Bulk case.This is from the COMBICON MSTBT Series.Additionally, there are other features such as PA, UL 94V0.Its Retention Latches (Non-Wire Side) feature makes it more powerful in a number of ways.Cable, Free Hanging is the mounting point for the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
