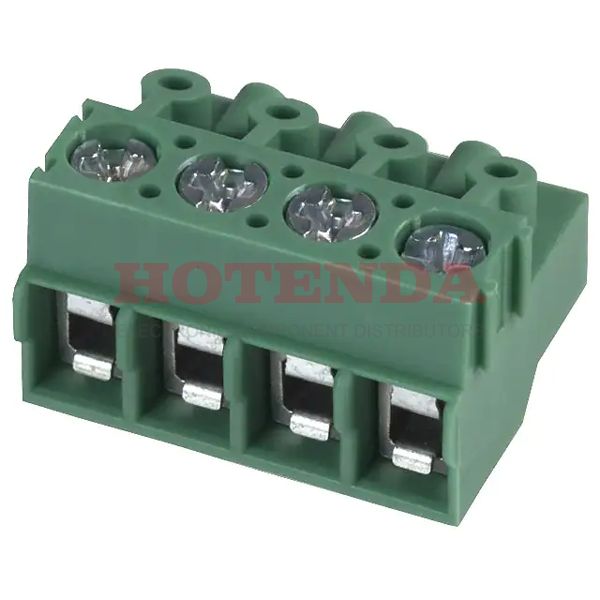

Name: 1934887
Brand: Phoenix Contact
SKU: 1934887
Price: 0.98000 USD
Availability: InStock

new-10%

1934887

Manufacturer part number:1934887

Manufacturer:Phoenix Contact

Description:1934887 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1934887 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Contact Material	Copper
Mount	Free Hanging, Through Hole
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	4.580007g
Packaging	Bulk
Published	2003
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug for Unshrouded Header
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.197 5.00mm
Orientation	Right Angle/Straight
Depth	15mm
Insulation Height	0.449 11.40mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	UL
Number of Contacts	4
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M2.6
Stripping Length	5mm
Test Voltage	4kV
Height	11.3mm
Length	20mm
Width	20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1934887 Product Details

1934887 Overview

This product is packaged in a Screw, Socket carton.This device is mounted in the Free Hanging (In-Line) position.A Bulk case is used for packaging.The product belongs to the COMBICON PT Series.Whenever the temperature is below 105°C, it's best.The device must run at -40°C degrees.Free Hanging, Through Hole represents the mounting point for the part.A voltage greater than 250V should not be applied to this chip.Other Plug for Unshrouded Header products benefit from this part as well.
