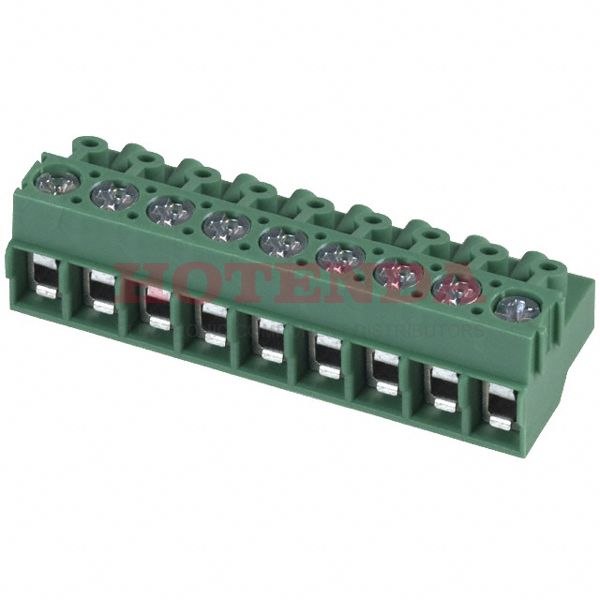

Name: 1934939
Brand: Phoenix Contact
SKU: 1934939
Price: 2.07000 USD
Availability: InStock

new-10%

1934939

Manufacturer part number:1934939

Manufacturer:Phoenix Contact

Description:1934939 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1934939 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Mount	Free Hanging, Through Hole
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	10.199988g
Packaging	Bulk
Published	2005
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Screw
Type	Plug for Unshrouded Header
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.197 5.00mm
Orientation	Right Angle/Straight
Depth	15mm
Insulation Height	0.449 11.40mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	UL, cULus
Number of Contacts	9
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	10A
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	14 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Number of Ways	9
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Current - IEC	12A
Screw Size	M2.6
Stripping Length	5mm
Height	11.3mm
Length	45mm
Width	40mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1934939 Product Details

1934939 Overview

Currently, it is packaged in Screw.Free Hanging (In-Line) is the mounting type.An orange Bulk case is used to package the product.Among the products in the COMBICON PT Series, it is one of the most popular.Mounting of the part is based on Free Hanging, Through Hole.Ensure that this chip's supply voltage does not exceed 250V volts.There are a lot of similarities between this part and other Plug for Unshrouded Header products.
