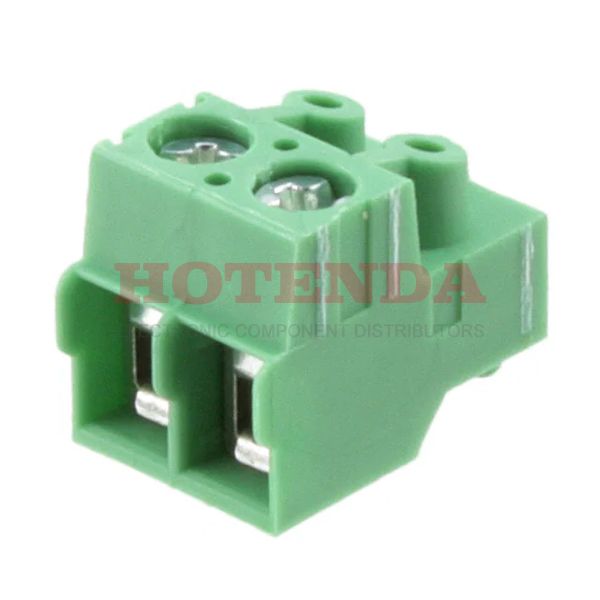

1935019

1935019

1935019

Phoenix Contact

1935019 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1935019 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 2.270003g
PackagingBulk
Published 2010
Series COMBICON PT
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug for Unshrouded Header
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional FeatureSTANDARD: UL 94V-0, PA
HTS Code8536.69.40.40
Pitch 0.197 5.00mm
Depth 11.3mm
Current Rating10A
Termination Style Screw - Rising Cage Clamp
Voltage 250V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-26 AWG
Torque - Screw 0.4 Nm (3.5 Lb-In)
Number of Ways 2
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 5mm
Number of Positions Per Level 2
Screw Size M2.6
Height 11.3mm
Length 10mm
Width 14.9mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:14853 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.318816$0.318816
10$0.300769$3.00769
100$0.283745$28.3745
500$0.267684$133.842
1000$0.252532$252.532

1935019 Product Details

1935019 Overview


It comes in a Screw, Socket package.Mounting type Free Hanging (In-Line) is selected for the device.Packaging the product involves using a Bulk case.The product is a member of the COMBICON PT Series.There are also features like STANDARD: UL 94V-0, PA, just to name a few.Free Hanging represents the mounting point for the part.As with other Plug for Unshrouded Header products, this part has a lot of benefits.

1935019 Features


COMBICON PT series

1935019 Applications


There are a lot of Phoenix Contact 1935019 Terminal Blocks applications.

  • Blowers
  • Control panels
  • LED municipal outdoor and street lighting
  • Measuring & Control Technology
  • Energy efficient lighting (LED)
  • Transportation
  • Data Technology
  • Communication
  • Anywhere power is distributed
  • Automotive Electronics
