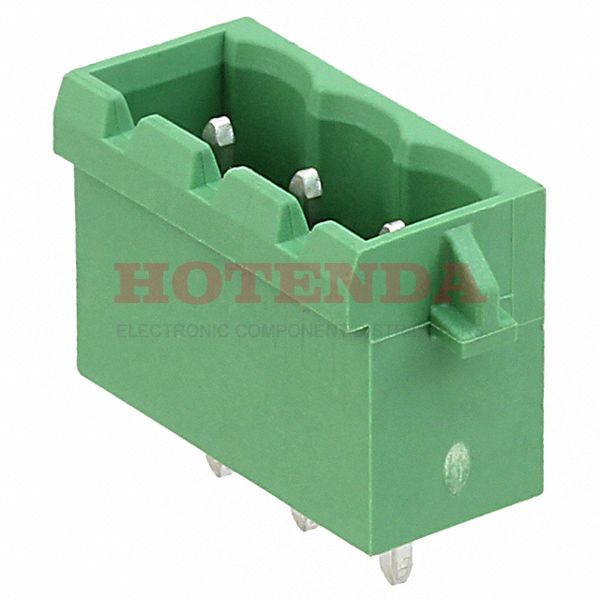

Name: 1936021
Brand: Phoenix Contact
SKU: 1936021
Price: 1.43000 USD
Availability: InStock

new-10%

1936021

Manufacturer part number:1936021

Manufacturer:Phoenix Contact

Description:1936021 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1936021 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	1.759995g
Packaging	Bulk
Published	2003
Series	COMBICON MSTBVA
Feature	Locking Ramp
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, UL 94V0
Pitch	0.200 5.08mm
Depth	8.6mm
Insulation Height	0.472 12.00mm
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Voltage - UL	300V
Number of Decks	1
Voltage - IEC	400V
Number of Ways	3
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	3
Height	15.9mm
Length	21.06mm
Width	21.06mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1936021 Product Details

1936021 Overview

It comes in Plug packaging.The device's mounting type is Through Hole.It is necessary to use a Bulk case for packaging the product.As a product of the COMBICON MSTBVA Series, it can be found in this category.Furthermore, there are other features available, such as PBT, UL 94V0, to name a few.A number of advantages can be derived from its Locking Ramp feature.This part is mounted by Through Hole. It shares many benefts with other Header, Male Pins, Shrouded (4 Side) products.
