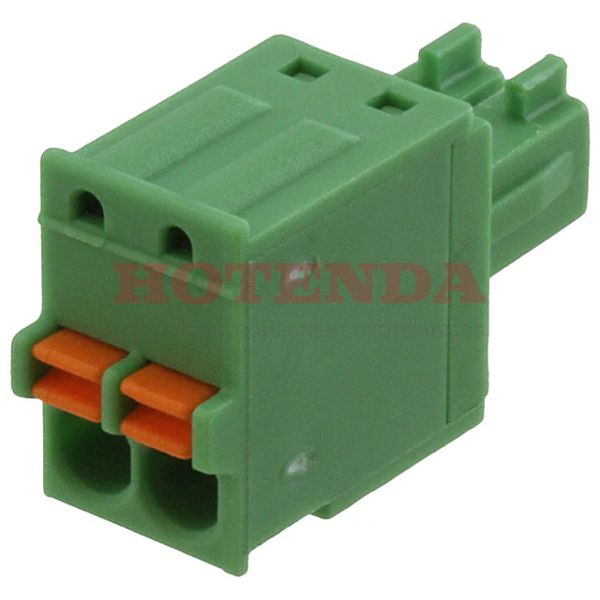

Name: 1939918
Brand: Phoenix Contact
SKU: 1939918
Price: 4.25000 USD
Availability: InStock

new-10%

1939918

Manufacturer part number:1939918

Manufacturer:Phoenix Contact

Description:1939918 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1939918 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	101.999997g
Packaging	Bulk
Published	2002
Series	COMBICON FK-MCP
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Straight
Depth	12.4mm
Insulation Height	0.488 12.40mm
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Approval Agency	CB, VDE, cULus
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Number of Positions Per Level	2
Fastening Method	SPRING LOADED
Height	12.4mm
Length	7.9mm
Width	20.8mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1939918 Product Details

1939918 Overview

It comes in Socket packaging.The device's mounting type is Free Hanging (In-Line).Packaging for the product is carried out via a Bulk case.Among the products in the COMBICON FK-MCP Series, it is one of the most popular.Additionally, there are other features, such as PA, UL 94V-0.The part is mounted by Cable, Free Hanging.Other Plug, Female Sockets products share lots of benefits with this part.
