Name: 1939976
Brand: Phoenix Contact
SKU: 1939976
Price: 19.11000 USD
Availability: InStock

new

1939976

Manufacturer part number:1939976

Manufacturer:Phoenix Contact

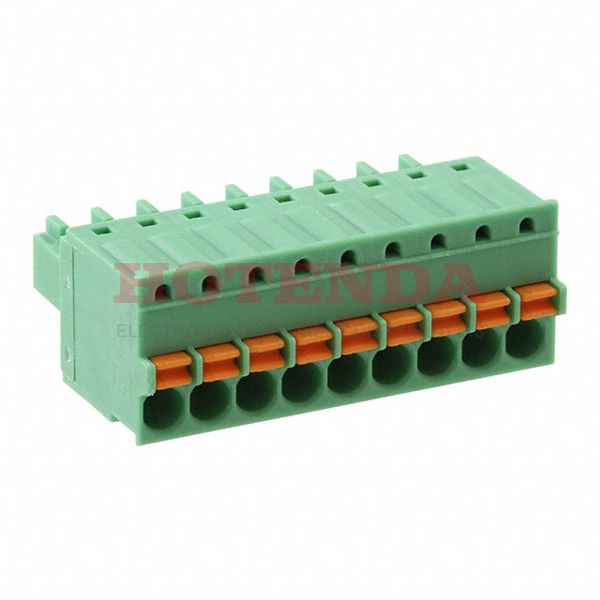

Description:Bulk 0.138 3.50mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON FK-MCP Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1939976 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	7.599997g
Packaging	Bulk
Series	COMBICON FK-MCP
Published	2002
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Pitch	0.138 3.50mm
Insulation Height	0.488 12.40mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Number of Ways	9
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Number of Positions Per Level	9
Fastening Method	SPRING LOADED
Height	20.8mm
Length	12.4mm
Width	32.4mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1939976 Product Details

1939976 Overview

The product is packaged in Socket.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON FK-MCP Series.Part Free Hanging is mounted to the part.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
