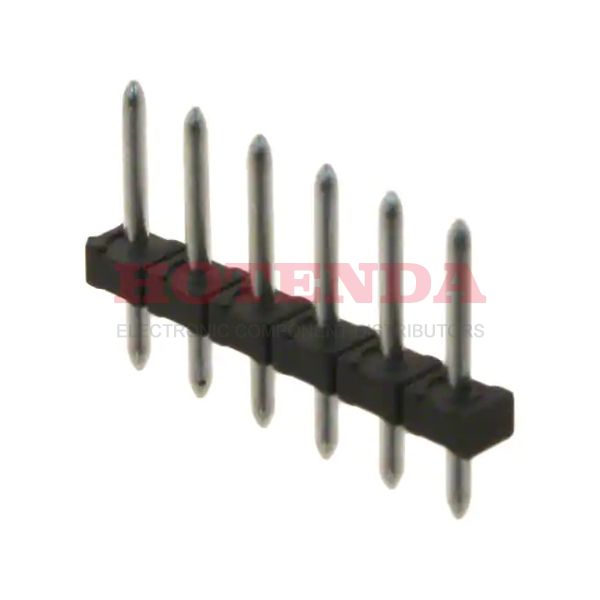

Name: 1945135
Brand: Phoenix Contact
SKU: 1945135
Price: 0.53000 USD
Availability: InStock

new-10%

1945135

Manufacturer part number:1945135

Manufacturer:Phoenix Contact

Description:1945135 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1945135 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	660.005248mg
Packaging	Bulk
Published	2005
Series	COMBICON PST
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Unshrouded
Color	Black
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, 94V-0
Voltage - Rated DC	250V
Pitch	0.138 3.50mm
Orientation	Straight
Depth	2.8mm
Insulation Height	0.512 13.00mm
Current Rating	8A
Termination Style	Solder
Approval Agency	UL
Lead Pitch	3.5mm
Voltage	300V
Contact Tail Length	0.150 3.81mm
Max Current Rating	6A
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Number of Decks	1
Number of Ways	6
Safety Approval	UL
Header Orientation	Vertical
Current - IEC	8A
Number of Positions Per Level	6
Height	13mm
Length	21mm
Width	21mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1945135 Product Details

1945135 Overview

This device has a mounting type of Through Hole.To package the product, a Bulk case is used.A product of the COMBICON PST Series, it belongs to the range of products of that series.Additionally, there are other features, such as PA, 94V-0.Part Through Hole is mounted to the part.In addition to its benefits, this part also shares many with the other products in the Header, Male Pins, Unshrouded series.
