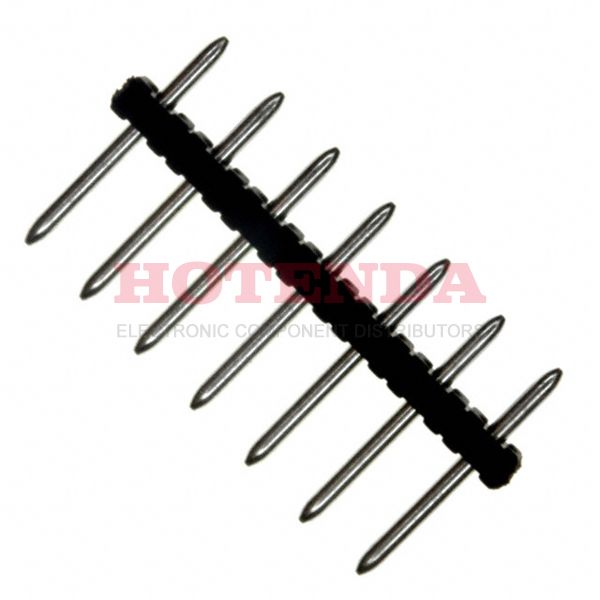

Name: 1945148
Brand: Phoenix Contact
SKU: 1945148
Price: 0.64000 USD
Availability: InStock

new-10%

1945148

Manufacturer part number:1945148

Manufacturer:Phoenix Contact

Description:1945148 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1945148 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	770.001398mg
Packaging	Bulk
Published	2005
Series	COMBICON PST
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Unshrouded
Color	Black
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Straight
Depth	2.8mm
Insulation Height	0.512 13.00mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Solder
Approval Agency	cULus
Voltage	300V
Contact Tail Length	0.150 3.81mm
Max Current Rating	6A
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	250V
Number of Ways	7
Safety Approval	UL
Header Orientation	Vertical
Current - IEC	8A
Number of Positions Per Level	7
Length	24.5mm
Width	21mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1945148 Product Details

1945148 Overview

A Through Hole mounting type is specified for the device.Packaged in a Bulk case.Specifically, it is one of the products in the COMBICON PST Series.Moreover, there are a number of other features, including PA, 94V-0, to name just a few.Mounted by Through Hole.This part shares lots of benefits with other Header, Male Pins, Unshrouded products.
