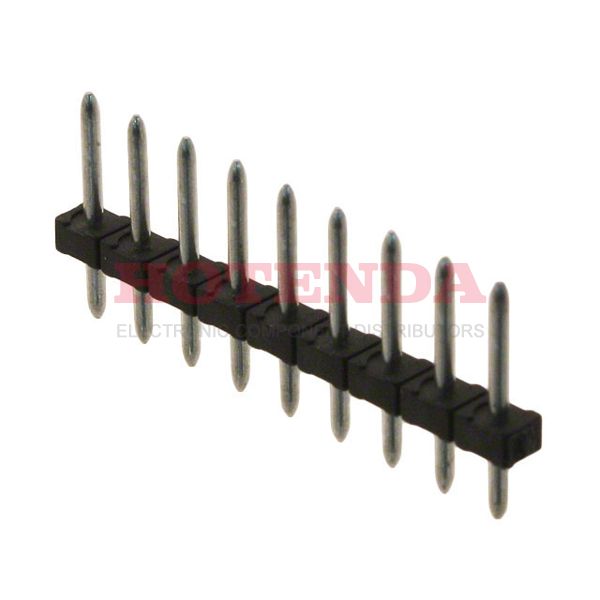

1945164

1945164

1945164

Phoenix Contact

1945164 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1945164 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 989.993697mg
PackagingBulk
Published 2005
Series COMBICON PST
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Unshrouded
Color Black
Number of Rows 1
Voltage - Rated 160V
Pitch 0.138 3.50mm
Orientation Straight
Depth 2.8mm
Insulation Height 0.512 13.00mm
Reach Compliance Code unknown
Current Rating8A
Termination Style Solder
Approval Agency UL
Voltage 300V
Contact Tail Length 0.150 3.81mm
Max Current Rating 6A
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 250V
Number of Ways 9
Safety Approval UL
Header Orientation Vertical
Current - IEC 8A
Number of Positions Per Level 9
Length 31.5mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:8108 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.758869$0.758869
10$0.715914$7.15914
100$0.675390$67.539
500$0.637161$318.5805
1000$0.601095$601.095

1945164 Product Details

1945164 Overview


This device has a mounting type of Through Hole.We pack the product in a Bulk case.This product is part of the COMBICON PST Series.It's mounted by Through Hole.It is a part that shares many benefits with other products from the Header, Male Pins, Unshrouded line.

1945164 Features


COMBICON PST series

1945164 Applications


There are a lot of Phoenix Contact 1945164 Terminal Blocks applications.

  • Telecommunications
  • Datacom
  • Transportation
  • Medical technology
  • Energy efficient lighting (LED)
  • Data Technology
  • Automotive Electronics
  • All Electrical Machinery
  • Measuring & Control Technology
  • Refrigeration control
