1952034

1952034

1952034

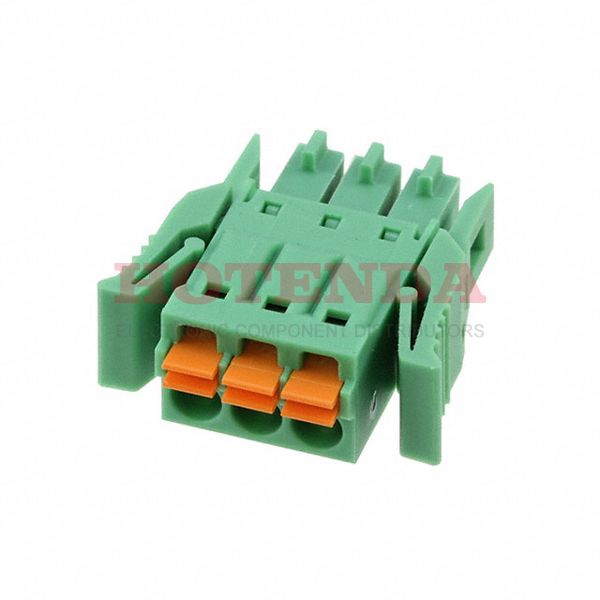

Phoenix Contact

1952034 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1952034 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 2.090012g
PackagingBulk
Published 2003
Series COMBICON FMC
Feature Latch Lock
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional FeaturePA, UL 94V-0
Pitch 0.138 3.50mm
Insulation Height 0.307 7.80mm
Current Rating8A
Termination Style Screwless - Push-In Spring
Approval Agency CB, VDE, cULus
Voltage 150V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Number of Ways 3
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 3
Fastening Method SPRING LOADED
Height 20.6mm
Length 7.8mm
Width 22.9mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:1303 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$6.003164$6.003164
10$5.663363$56.63363
100$5.342795$534.2795
500$5.040372$2520.186
1000$4.755069$4755.069

1952034 Product Details

1952034 Overview


The product comes in a package of Socket.This device's mounting type is Free Hanging (In-Line).We use a Bulk case to package the product.It is part of the COMBICON FMC Series of products.There are also other features such as PA, UL 94V-0, to name only a few.With its Latch Lock feature, it is more powerful in many ways.Mounting of the part is based on Free Hanging.There are many benefits shared between this part and other Plug, Female Sockets products.

1952034 Features


COMBICON FMC series

1952034 Applications


There are a lot of Phoenix Contact 1952034 Terminal Blocks applications.

  • Transportation
  • Embedded systems
  • Energy efficient lighting (LED)
  • Blowers
  • Industrial Automation
  • Instrumentation
  • Anywhere power is distributed
  • Automotive Electronics
  • Data Technology
  • Electrical substations
