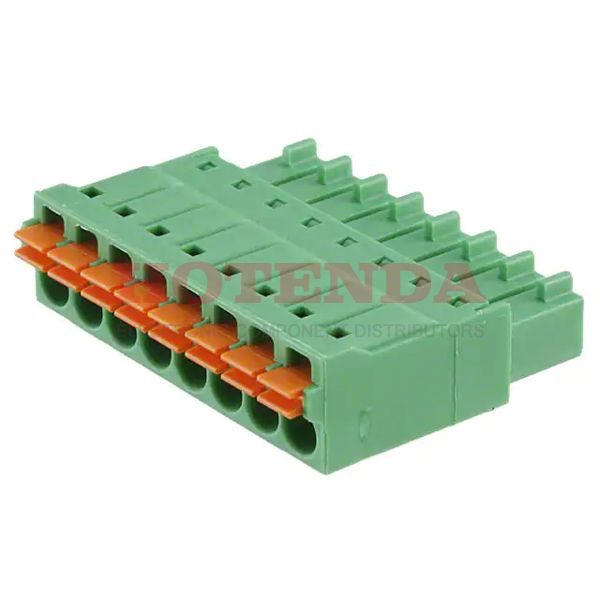

1952322

1952322

1952322

Phoenix Contact

1952322 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1952322 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact MaterialCopper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 4.329993g
PackagingBulk
Published 2003
Series COMBICON FMC
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional FeaturePA, 94V-0
Pitch 0.138 3.50mm
Orientation Straight
Insulation Height 0.307 7.80mm
Current Rating8A
Termination Style Screwless - Push-In Spring
Number of Contacts 8
Voltage 150V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Number of Ways 8
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 10mm
Fastening Method SPRING LOADED
Height 22.9mm
Length 7.8mm
Width 28.7mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:751 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$9.21000$9.21
10$8.95400$89.54
50$8.36860$418.43
100$7.69900$769.9
250$7.11328$1778.32
500$6.77852$3389.26

1952322 Product Details

1952322 Overview


The product comes in a package of Socket.Free Hanging (In-Line) is the mounting type for the device.It has been determined that a Bulk case is necessary to package the product.A member of the COMBICON FMC Series.As well as PA, 94V-0, to name a few.You've got Cable, Free Hanging mounted on the part.It is a part that shares many benefits with other products from the Plug, Female Sockets line.

1952322 Features


COMBICON FMC series

1952322 Applications


There are a lot of Phoenix Contact 1952322 Terminal Blocks applications.

  • Embedded systems
  • Measuring & Control Technology
  • All Electrical Machinery
  • Refrigeration control
  • Electrical substations
  • Energy efficient lighting (LED)
  • Control panels
  • Anywhere power is distributed
  • Variable speed/frequency drivers
  • Communication
