Name: 1952474
Brand: Phoenix Contact
SKU: 1952474
Price: 5.46000 USD
Availability: InStock

new-10%

1952474

Manufacturer part number:1952474

Manufacturer:Phoenix Contact

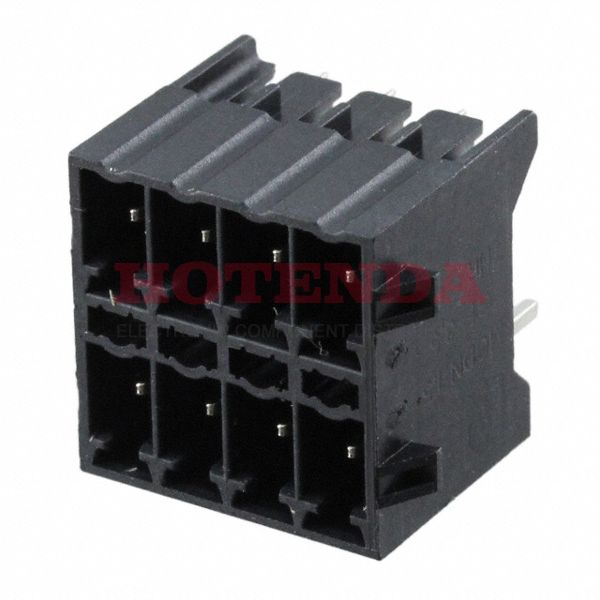

Description:Bulk 0.138 3.50mm Black 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MCDNV Liquid Crystal Polymer (LCP) Tin

Case Package:SOT-23

Datasheet:1952474 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Weight	105g
Packaging	Bulk
Series	COMBICON MCDNV
Published	2002
Feature	Locking Ramp
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Color	Black
Number of Rows	1
Voltage - Rated	160V
Pitch	0.138 3.50mm
Insulation Height	0.524 13.30mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Solder
Voltage	150V
Contact Tail Length	0.102 2.60mm
Number of Levels	2
Current	8A
Contact Mating Finish	Tin
Voltage - UL	150V
Number of Decks	1
Voltage - IEC	250V
Number of Ways	4
Safety Approval	UL
Header Orientation	Vertical
Current - IEC	8A per Position
Number of Positions Per Level	4
Fastening Method	CONNECTOR
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1952474 Product Details

1952474 Overview

There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the COMBICON MCDNV Series.In many ways, its Locking Ramp feature makes it more powerful.Through Hole is used to mount the part.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
