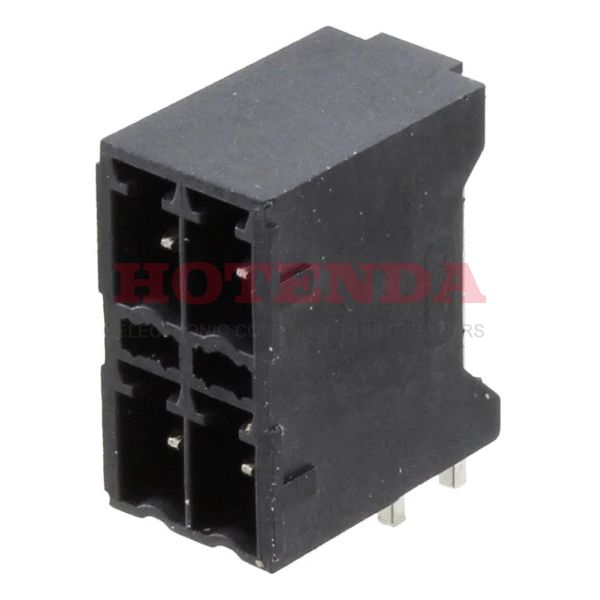

Name: 1953716
Brand: Phoenix Contact
SKU: 1953716
Price: 3.75000 USD
Availability: InStock

new-10%

1953716

Manufacturer part number:1953716

Manufacturer:Phoenix Contact

Description:1953716 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1953716 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Weight	1.519988g
Packaging	Bulk
Published	2002
Series	COMBICON MCDN
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Color	Black
Number of Rows	2
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	13.3mm
Insulation Height	0.598 15.19mm
Current Rating	8A
Termination Style	Solder
Voltage	150V
Contact Tail Length	0.102 2.60mm
Max Current Rating	8A
Current	8A
Number of Decks	1
Voltage - IEC	250V
Number of Ways	2
Safety Approval	UL
Header Orientation	90°, Right Angle
Current - IEC	8A per Position
Fastening Method	CONNECTOR
Height	13.3mm
Length	8.5mm
Width	17.8mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1953716 Product Details

1953716 Overview

It comes in a Plug package.Through Hole indicates that the device is mounted.It is necessary to use a Bulk case for packaging the product.A product of the COMBICON MCDN Series, it belongs to the range of products of that series.By Through Hole it's mounted.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
