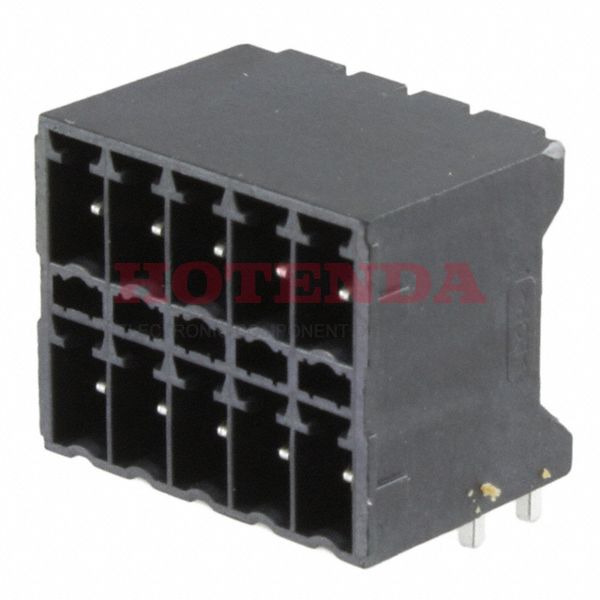

Name: 1953745
Brand: Phoenix Contact
SKU: 1953745
Price: 6.82000 USD
Availability: InStock

new-10%

1953745

Manufacturer part number:1953745

Manufacturer:Phoenix Contact

Description:1953745 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1953745 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Weight	102.999998g
Packaging	Bulk
Published	2002
Series	COMBICON MCDN
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	10
Color	Black
Number of Rows	1
Voltage - Rated	160V
Additional Feature	LCP, UL 94V-0
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	13.3mm
Insulation Height	0.598 15.19mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Solder
Voltage	150V
Contact Tail Length	0.102 2.60mm
Max Current Rating	8A
Number of Levels	2
Current	8A
Number of Decks	1
Voltage - IEC	250V
Number of Ways	5
Safety Approval	UL
Header Orientation	90°, Right Angle
Current - IEC	8A per Position
Number of Positions Per Level	5
Fastening Method	CONNECTOR
Height	17.8mm
Length	19mm
Width	19mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1953745 Product Details

1953745 Overview

This product is packaged in a Plug cartonThere is a mounting type of Through Hole for this device.A Bulk case is used to package the product.COMBICON MCDN Series product.There are also other features, like LCP, UL 94V-0, to name a few.Through Hole is mounting the part.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
