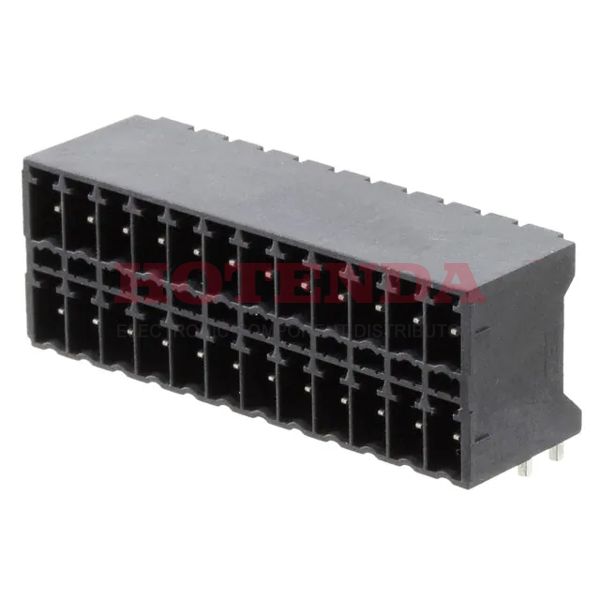

Name: 1953813
Brand: Phoenix Contact
SKU: 1953813
Price: 15.32000 USD
Availability: InStock

new

1953813

Manufacturer part number:1953813

Manufacturer:Phoenix Contact

Description:1953813 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1953813 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Weight	102.999998g
Packaging	Bulk
Published	2002
Series	COMBICON MCDN
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	24
Color	Black
Number of Rows	1
Voltage - Rated	160V
Additional Feature	LCP, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	13.3mm
Insulation Height	0.598 15.19mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Solder
Voltage	150V
Contact Tail Length	0.102 2.60mm
Max Current Rating	8A
Number of Levels	2
Current	8A
Number of Decks	1
Voltage - IEC	250V
Number of Ways	12
Safety Approval	UL
Header Orientation	90°, Right Angle
Current - IEC	8A per Position
Number of Positions Per Level	12
Fastening Method	CONNECTOR
Height	17.8mm
Length	43.5mm
Width	43.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1953813 Product Details

1953813 Overview

The product comes in a package of Plug.Through Hole is the mounting type for the device.To package the product, we use a Bulk case.The product is a member of the COMBICON MCDN Series.Further, there are features such as LCP, UL 94V-0, to name only a few.Part Through Hole is mounted to the part.Other Header, Male Pins, Shrouded (4 Side) products share lots of benefits with this part.
