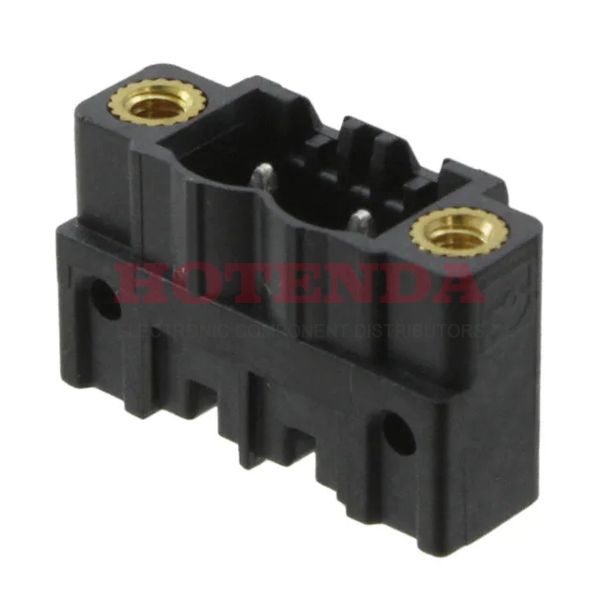

Name: 1955633
Brand: Phoenix Contact
SKU: 1955633
Price: 4.33000 USD
Availability: InStock

new-10%

1955633

Manufacturer part number:1955633

Manufacturer:Phoenix Contact

Description:1955633 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1955633 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Weight	150.999993g
Packaging	Bulk
Published	2011
Series	COMBICON CCV
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Voltage - Rated	250V
Additional Feature	LCP, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.102 2.60mm
Number of Levels	1
Current	10A
Voltage - UL	300V
Number of Decks	1
Voltage - IEC	400V
Number of Ways	2
Safety Approval	UL
Header Orientation	Vertical
Current - IEC	12A per position
Number of Positions Per Level	2
Height	14.6mm
Length	8.6mm
Width	20.32mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1955633 Product Details

1955633 Overview

A Plug packaging is included.Mounting type is Through Hole.Packaging the product involves using a Bulk case.The product is part of the COMBICON CCV Series.Furthermore, there are other features available, such as LCP, UL 94V-0, to name a few.There are a number of advantages to its Mating Flange feature.You've got Through Hole mounted on the part.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
