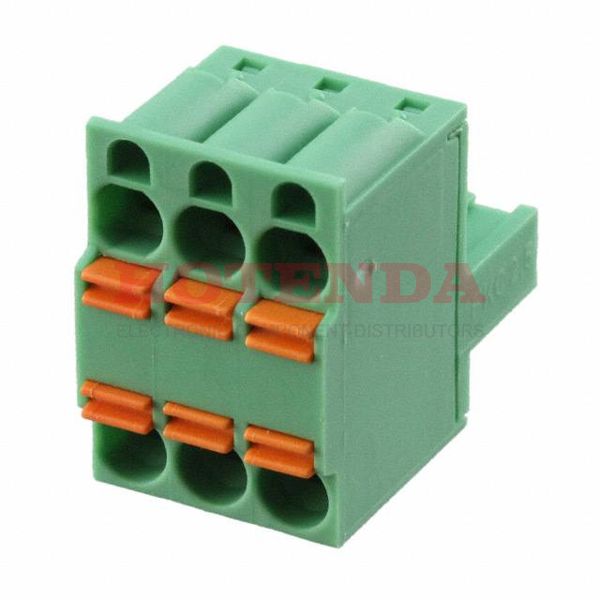

Name: 1962613
Brand: Phoenix Contact
SKU: 1962613
Price: 7.56000 USD
Availability: InStock

new-10%

1962613

Manufacturer part number:1962613

Manufacturer:Phoenix Contact

Description:1962613 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1962613 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	7.160012g
Packaging	Bulk
Published	2002
Series	COMBICON TFKC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	3
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	320V
Additional Feature	PA, UL 94V-0
Pitch	0.200 5.08mm
Depth	22.1mm
Insulation Height	0.870 22.10mm
Current Rating	12A
Termination Style	Screwless - Push-In Spring
Voltage	300V
Number of Levels	1 (Mate), 2 (Input)
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Positions Per Level	3 (Mate), 6 (Input)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	22.1mm
Length	25.7mm
Width	25.7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1962613 Product Details

1962613 Overview

A Socket package is included with it.Free Hanging (In-Line) is the mount type.A Bulk case is used to package the product.The product belongs to the COMBICON TFKC Series.Besides that, there's also PA, UL 94V-0, to name a few.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.Free Hanging represents the mounting point for the part.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
