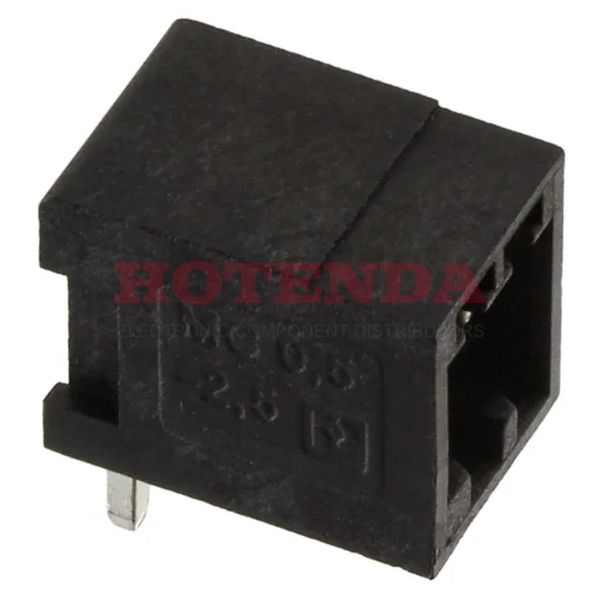

Name: 1963421
Brand: Phoenix Contact
SKU: 1963421
Price: 1.06000 USD
Availability: InStock

new-10%

1963421

Manufacturer part number:1963421

Manufacturer:Phoenix Contact

Description:1963421 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1963421 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	76.999998g
Packaging	Bulk
Published	2003
Series	MICRO-COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Voltage - Rated	32V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.098 2.50mm
Orientation	Right Angle
Depth	10.1mm
Insulation Height	0.319 8.10mm
Reach Compliance Code	unknown
Current Rating	4A
Termination Style	Solder
Voltage	125V
Max Current Rating	4A
Number of Levels	1
Current	4A
Number of Decks	1
Voltage - IEC	160V
Number of Ways	2
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	2
Fastening Method	CONNECTOR
Height	10.1mm
Length	6.9mm
Width	11.9mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1963421 Product Details

1963421 Overview

This product is packaged in a Plug carton.Through Hole is the mount type.Packaging is performed using a Bulk case.It is part of the MICRO-COMBICON MC Series of products.Among other features are PA, 94V-0, to name only a few.Through Hole is used to mount the part.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
