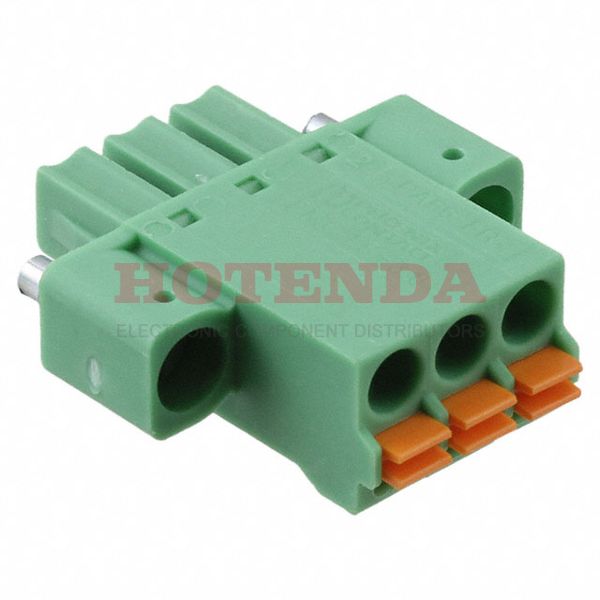

Name: 1966101
Brand: Phoenix Contact
SKU: 1966101
Price: 4.19000 USD
Availability: InStock

new-10%

1966101

Manufacturer part number:1966101

Manufacturer:Phoenix Contact

Description:1966101 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1966101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	89.000011g
Packaging	Bulk
Published	2003
Series	COMBICON FMC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
Pitch	0.138 3.50mm
Insulation Height	0.307 7.80mm
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Approval Agency	CB, VDE, cULus
Voltage	150V
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	320V
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Number of Positions Per Level	3
Fastening Method	SPRING LOADED
Height	7.8mm
Length	22.9mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1966101 Product Details

1966101 Overview

This device has a Free Hanging (In-Line) mounting type.Packaging the product involves using a Bulk case.A product of the COMBICON FMC Series, it belongs to the range of products of that series.Additionally, there are features like PA, UL 94V-0, just to name a few.It is more powerful in many ways due to its Mating Flange feature.You've got Free Hanging mounted on the part.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
