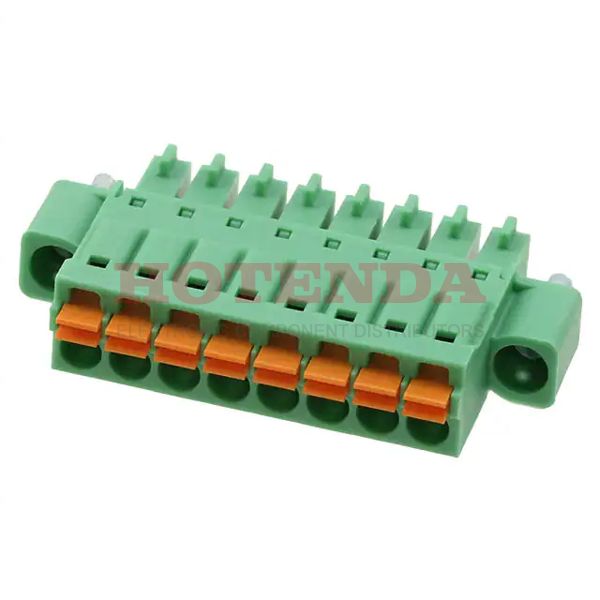

Name: 1966156
Brand: Phoenix Contact
SKU: 1966156
Price: 7.79000 USD
Availability: InStock

new

1966156

Manufacturer part number:1966156

Manufacturer:Phoenix Contact

Description:1966156 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1966156 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	89.000011g
Packaging	Bulk
Published	2003
Series	COMBICON FMC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
Pitch	0.138 3.50mm
Depth	7.8mm
Insulation Height	0.307 7.80mm
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Voltage	150V
Number of Levels	1
Current	8A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	320V
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Number of Positions Per Level	8
Fastening Method	SPRING LOADED
Height	22.9mm
Length	22.9mm
Width	38.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1966156 Product Details

1966156 Overview

You'll get Socket packages.The device's mounting type is Free Hanging (In-Line).A Bulk case is used for packaging.This is from the COMBICON FMC Series.Additionally, there are other features such as PA, UL 94V-0.Its Mating Flange feature renders it more powerful in many ways.Mounted by Free Hanging.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
