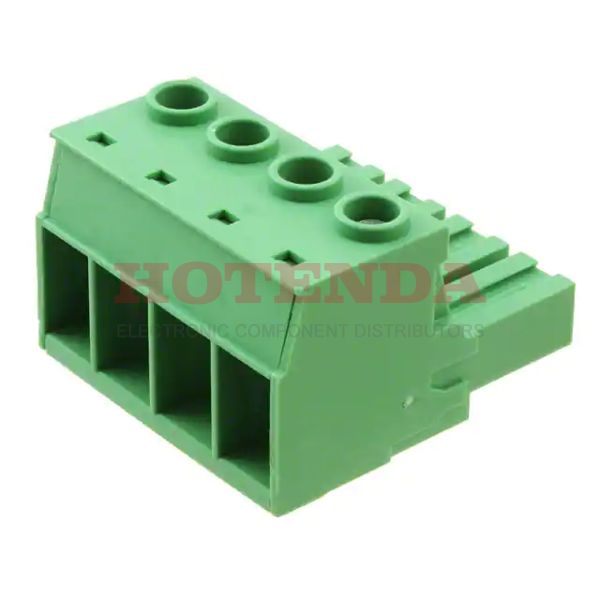

Name: 1967391
Brand: Phoenix Contact
SKU: 1967391
Price: 20.87000 USD
Availability: InStock

new

1967391

Manufacturer part number:1967391

Manufacturer:Phoenix Contact

Description:1967391 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1967391 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Silver
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	34.990002g
Packaging	Bulk
Published	2004
Series	COMBICON PC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	1kV
Pitch	0.400 10.16mm
Orientation	Right Angle
Depth	27.8mm
Insulation Height	1.094 27.80mm
Current Rating	76A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, UL
Voltage	600V
Max Current Rating	76A
Number of Levels	1
Current	55A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	6 AWG
Number of Decks	1
Wire Gauge or Range - AWG	6-20 AWG
Voltage - IEC	1kV
Torque - Screw	1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.75-16mm2
Wire Strip Length	12mm
Number of Positions Per Level	4
Screw Size	M4
Stripping Length	14mm
Height	27.8mm
Length	41.5mm
Width	41.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1967391 Product Details

1967391 Overview

It comes in a Screw, Socket package.A Free Hanging (In-Line) mounting type is specified for the device.This product is packaged in a case marked Bulk.Product number COMBICON PC belongs to the COMBICON PC Series.Cable, Free Hanging, Plug-In represents the mounting point for the part.Other Plug, Female Sockets products share lots of benefits with this part.
