Name: 1969483
Brand: Phoenix Contact
SKU: 1969483
Price: 25.23000 USD
Availability: InStock

new

1969483

Manufacturer part number:1969483

Manufacturer:Phoenix Contact

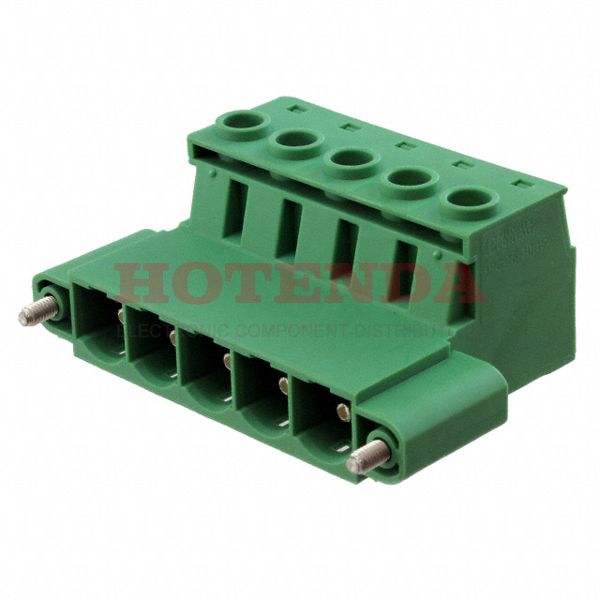

Description:Bulk 0.400 10.16mm Green 1 Levels Free Hanging (In-Line) Plug, Male Pins COMBICON IPC Polyamide (PA), Nylon Silver

Case Package:SOT-23

Datasheet:1969483 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Silver
Housing Material	Polyamide (PA), Nylon
Weight	56.699046g
Packaging	Bulk
Series	COMBICON IPC
Published	2011
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Male Pins
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	1kV
Additional Feature	PA, UL 94V-0
Pitch	0.400 10.16mm
Insulation Height	1.094 27.80mm
Current Rating	76A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Number of Levels	1
Current	55A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	6 AWG
Contact Mating Finish	Silver
Voltage - UL	600V
Number of Decks	1
Wire Gauge or Range - AWG	6-20 AWG
Torque - Screw	1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.75-16mm2
Wire Strip Length	12mm
Current - IEC	76A
Number of Positions Per Level	5
Screw Size	M4
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1969483 Product Details

1969483 Overview

The packaging contains Screw.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number COMBICON IPC belongs to the COMBICON IPC Series.Further, there are features such as PA, UL 94V-0, to name only a few.In many ways, it is more powerful due to its Mating Flange feature.There is a Free Hanging mount on the part.There are a lot of similarities between this part and other Plug, Male Pins products.
