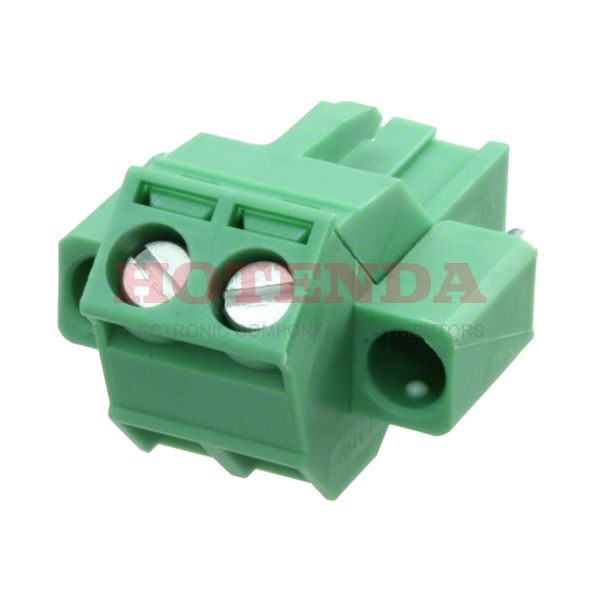

Name: 1970870
Brand: Phoenix Contact
SKU: 1970870
Price: 3.21000 USD
Availability: InStock

new-10%

1970870

Manufacturer part number:1970870

Manufacturer:Phoenix Contact

Description:1970870 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1970870 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	7.50015kg
Packaging	Bulk
Published	2010
Series	COMBICON SMSTB
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	2
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Depth	15.5mm
Insulation Height	0.610 15.49mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Plug Wire Entry	45°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	2
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2

1970870 Product Details

1970870 Overview

A Screw packaging is included.There is a mounting type of Free Hanging (In-Line) for this device.It's packaged in a Bulk case.Product number COMBICON SMSTB belongs to the COMBICON SMSTB Series.In many ways, its Mating Flange, Retention Latches (Non-Wire Side) feature makes it more powerful.By Free Hanging it's mounted.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
