1975817

1975817

1975817

Phoenix Contact

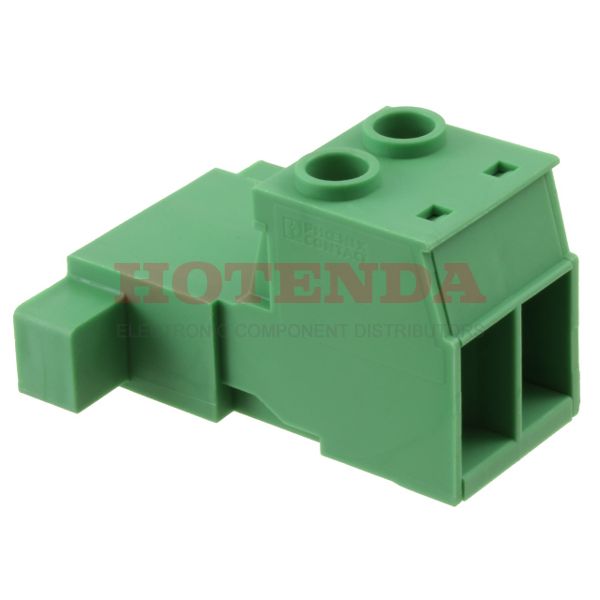

Bulk 0.400 10.16mm Green 1 Levels Free Hanging (In-Line) Plug, Male Pins COMBICON IPC Polyamide (PA), Nylon Silver

SOT-23

1975817 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Silver
Housing Material Polyamide (PA), Nylon
Weight 300.000012g
PackagingBulk
Published 2011
Series COMBICON IPC
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Male Pins
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Additional FeaturePA, UL 94V-0
HTS Code8536.69.40.40
Pitch 0.400 10.16mm
Depth 9.4mm
Insulation Height 1.094 27.80mm
Current Rating76A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 55A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 6 AWG
Contact Mating Finish Silver
Voltage - UL 600V
Number of Decks 1
Wire Gauge or Range - AWG 6-20 AWG
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.75-16mm2
Wire Strip Length 12mm
Current - IEC 76A
Number of Positions Per Level 2
Screw Size M4
Length 9.4mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:554 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$14.572744$14.572744
10$13.747871$137.47871
100$12.969690$1296.969
500$12.235557$6117.7785
1000$11.542978$11542.978

1975817 Product Details

1975817 Overview


The product is packaged in Screw.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON IPC Series.To name a few, there is also PA, UL 94V-0.There are a number of advantages to its Mating Flange feature.Part Free Hanging is mounted to the part.With this part, you get a lot of benefits that you won't find in other Plug, Male Pins products.

1975817 Features


COMBICON IPC series


1975817 Applications


There are a lot of Phoenix Contact
1975817 Terminal Blocks applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
