1976010

1976010

1976010

Phoenix Contact

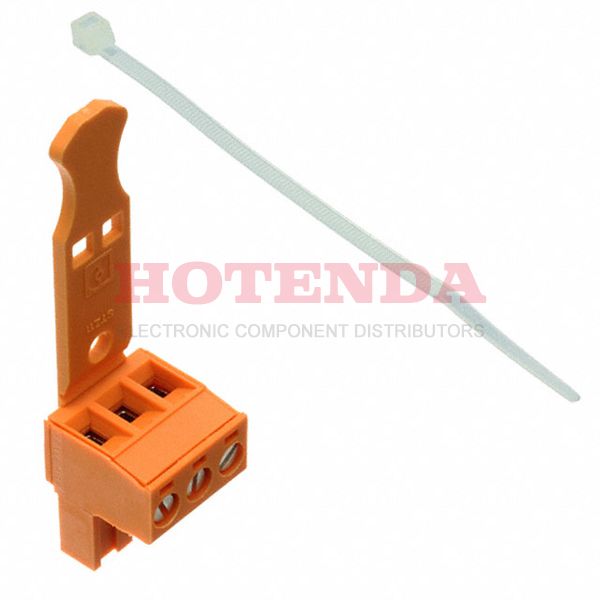

1976010 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1976010 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 9 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Weight 6.500007g
PackagingBulk
Published 2011
Series COMBICON MSTB
Feature Retention Latches (Non-Wire Side), Strain Relief
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 3
Color Orange
Voltage - Rated 250V
Pitch 0.200 5.08mm
Reach Compliance Code not_compliant
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Housing Color Green
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-30 AWG
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
RoHS StatusRoHS Compliant
In-Stock:1906 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$4.287115$4.287115
10$4.044448$40.44448
100$3.815518$381.5518
500$3.599545$1799.7725
1000$3.395796$3395.796

1976010 Product Details

1976010 Overview


A Screw packaging is included.It's mounted Free Hanging (In-Line).We pack the product in a Bulk case.It is part of the COMBICON MSTB Series of products.In many ways, its Retention Latches (Non-Wire Side), Strain Relief feature makes it more powerful.There is a Free Hanging mount on the part.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.

1976010 Features


COMBICON MSTB series

1976010 Applications


There are a lot of Phoenix Contact 1976010 Terminal Blocks applications.

  • Blowers
  • Anywhere power is distributed
  • Military Technology
  • Telecommunications
  • Control panels
  • LED municipal outdoor and street lighting
  • Refrigeration control
  • Electrical substations
  • Transportation
  • Data Technology
