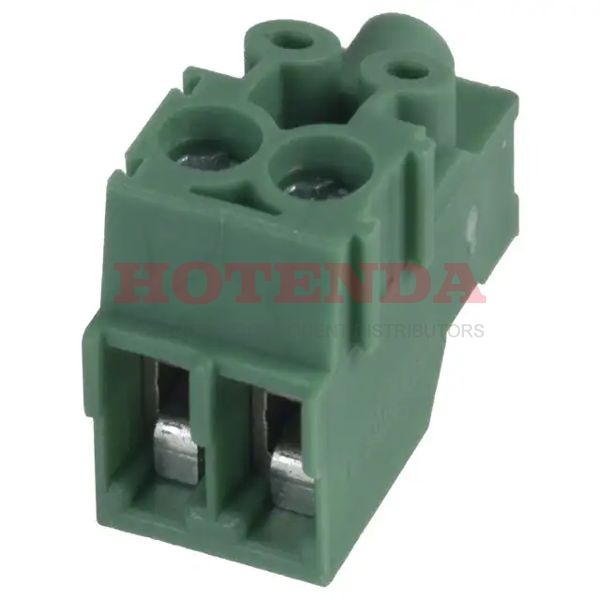

Name: 1984015
Brand: Phoenix Contact
SKU: 1984015
Price: 0.55000 USD
Availability: InStock

new-10%

1984015

Manufacturer part number:1984015

Manufacturer:Phoenix Contact

Description:1984015 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1984015 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Copper
Mount	Free Hanging, Through Hole
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	1.339997g
Packaging	Bulk
Published	2003
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug for Unshrouded Header
Color	Green
Number of Rows	1
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Right Angle/Straight
Depth	14.6mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	160V
Approval Agency	UL
Number of Contacts	2
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	6A
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-26 AWG
Voltage - IEC	400V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	2
Plug Wire Entry	90° and 180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	8A
Screw Size	M2
Stripping Length	5mm
Height	11mm
Length	7mm
Width	14.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1984015 Product Details

1984015 Overview

Packaging for this item is Screw, Socket.The mounting type of the device is Free Hanging (In-Line).An orange Bulk case is used to package the product.Among the products in the COMBICON PT Series, it is one of the most popular.There's a Free Hanging, Through Hole mount on the part.Ensure that this chip's supply voltage does not exceed 160V volts.As with other Plug for Unshrouded Header products, this part has a lot of benefits.
