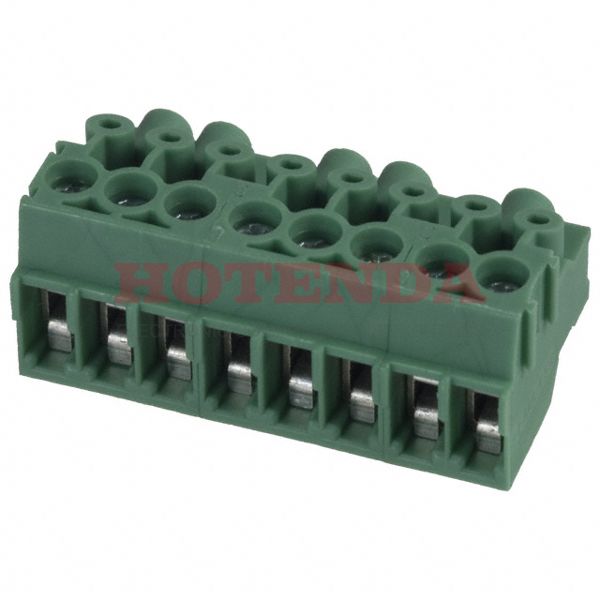

Name: 1984073
Brand: Phoenix Contact
SKU: 1984073
Price: 2.10000 USD
Availability: InStock

new-10%

1984073

Manufacturer part number:1984073

Manufacturer:Phoenix Contact

Description:1984073 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1984073 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	5.319986g
Packaging	Bulk
Published	2005
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug for Unshrouded Header
Color	Green
Number of Rows	1
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Right Angle/Straight
Depth	14.6mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	UL
Number of Contacts	8
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Wire/Cable Gauge	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-26 AWG
Voltage - IEC	400V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	90° and 180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Screw Size	M2
Stripping Length	5mm
Height	11mm
Length	28mm
Width	28mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1984073 Product Details

1984073 Overview

It comes in a Screw, Socket package.Free Hanging (In-Line) is the type of mounting for the device.Packaging the product involves using a Bulk case.Product number COMBICON PT belongs to the COMBICON PT Series.By Cable, Free Hanging it's mounted.This chip should not be supplied with a voltage greater than 160V.There are a number of benefits that this part has in common with other Plug for Unshrouded Header products.
