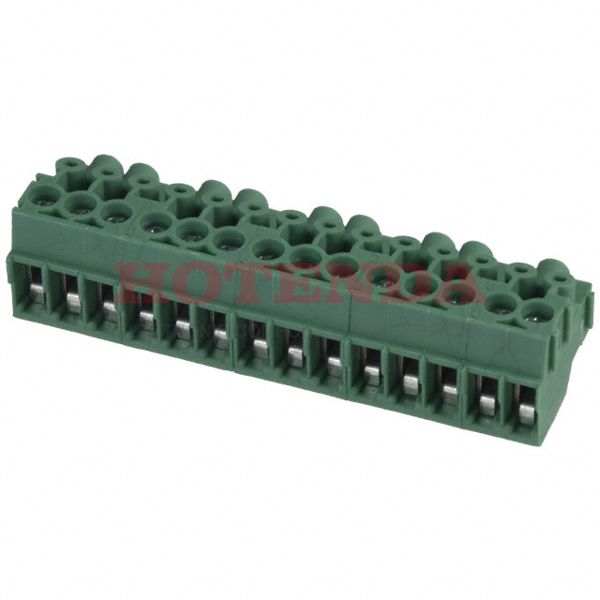

1984138

1984138

1984138

Phoenix Contact

1984138 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1984138 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 11 Weeks
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 9.519997g
PackagingBulk
Published 2005
Series COMBICON PT
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug for Unshrouded Header
Number of Positions 14
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional FeaturePA, UL 94V-0
HTS Code8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.437 11.10mm
Reach Compliance Code unknown
Current Rating8A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 26 AWG
Wire/Cable Gauge 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-26 AWG
Voltage - IEC 400V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 14
Safety Approval UL
Plug Wire Entry 90° and 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 5mm
Current - IEC 8A
Screw Size M2
Height 11mm
Length 14.6mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:2511 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.10000$3.1
10$3.01100$30.11
50$2.81400$140.7
100$2.58890$258.89
250$2.39192$597.98
500$2.39188$1195.94

1984138 Product Details

1984138 Overview


It comes in a Screw package.There is a Free Hanging (In-Line) mounting type for the device.The product is packaged in a Bulk case.This product is from the COMBICON PT Series.Additionally, there are other features, such as PA, UL 94V-0.Cable, Free Hanging is the mounting point for the part.In addition to its benefits, this part also shares many with the other products in the Plug for Unshrouded Header series.

1984138 Features


COMBICON PT series

1984138 Applications


There are a lot of Phoenix Contact 1984138 Terminal Blocks applications.

  • Embedded systems
  • Data Technology
  • Electrical substations
  • Automotive Electronics
  • Anywhere power is distributed
  • Blowers
  • All Electrical Machinery
  • Transportation
  • Military Technology
  • Refrigeration control
