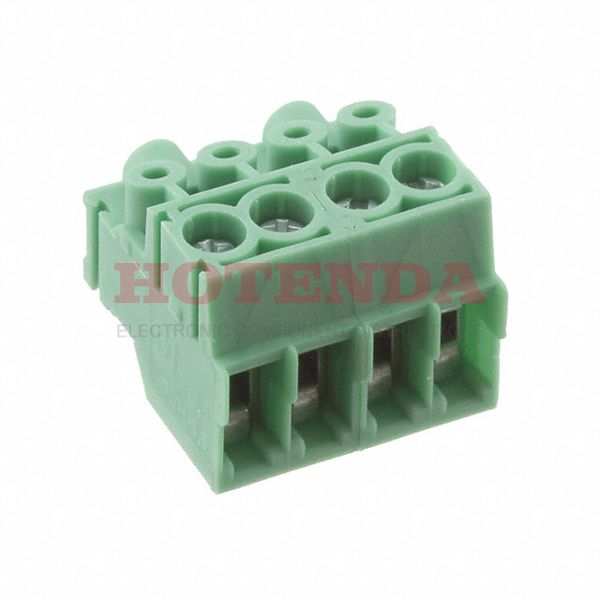

Name: 1984183
Brand: Phoenix Contact
SKU: 1984183
Price: 0.78000 USD
Availability: InStock

new-10%

1984183

Manufacturer part number:1984183

Manufacturer:Phoenix Contact

Description:1984183 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1984183 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	165.000008g
Packaging	Bulk
Published	2010
Series	COMBICON PT
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug for Unshrouded Header
Color	Green
Gender	Female
Voltage - Rated	160V
Pitch	0.138 3.50mm
Depth	11mm
Insulation Height	0.433 11.00mm
Reach Compliance Code	not_compliant
Current Rating	6A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	16-26 AWG
Voltage - IEC	400V
Torque - Screw	0.25 Nm (2.2 Lb-In)
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	5mm
Current - IEC	6A
Number of Positions Per Level	4
Screw Size	M2
Length	14.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1984183 Product Details

1984183 Overview

The packaging contains Screw.Its mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.Product number COMBICON PT belongs to the COMBICON PT Series.Mounted by Free Hanging.There are a lot of advantages this part has in common with other Plug for Unshrouded Header parts.
