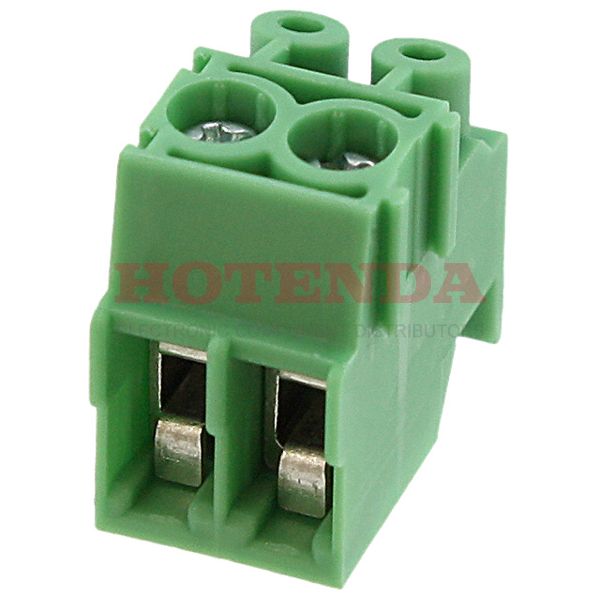

Name: 1984316
Brand: Phoenix Contact
SKU: 1984316
Price: 0.61000 USD
Availability: InStock

new-10%

1984316

Manufacturer part number:1984316

Manufacturer:Phoenix Contact

Description:1984316 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1984316 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	1.289988g
Packaging	Bulk
Published	2005
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug for Unshrouded Header
Number of Positions	2
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Depth	12.9mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	160V
Number of Contacts	2
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-26 AWG
Voltage - IEC	400V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	5mm
Current - IEC	8A
Screw Size	M2
Height	11mm
Length	12.9mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1984316 Product Details

1984316 Overview

This product is packaged in a Screw cartonFree Hanging (In-Line) is the mounting type for the device.We use a Bulk case to package the product.COMBICON PT Series product.There are also other features such as PA, UL 94V-0, to name only a few.You've got Cable, Free Hanging mounted on the part.A supply voltage of 300V should not be exceeded by this chip.In addition to its benefits, this part also shares many with the other products in the Plug for Unshrouded Header series.
