Name: 1990834
Brand: Phoenix Contact
SKU: 1990834
Price: 7.78000 USD
Availability: InStock

new-10%

1990834

Manufacturer part number:1990834

Manufacturer:Phoenix Contact

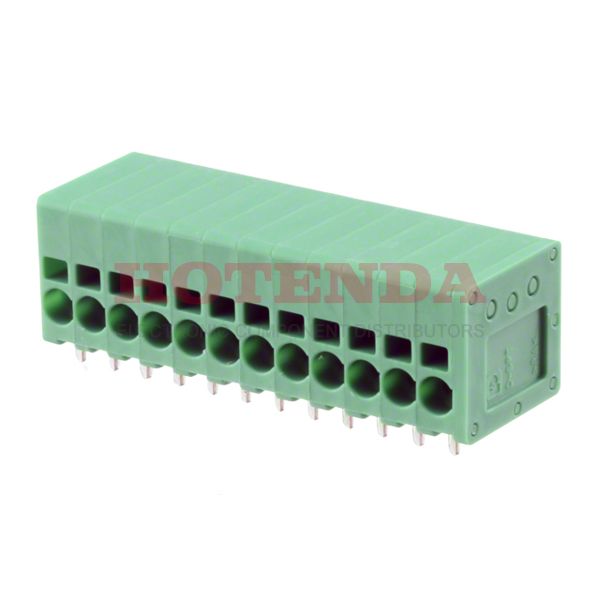

Description:0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screwless - Spring Cage, Tension Clamp 1 Levels 16-24 AWG COMBICON SPT

Case Package:SOT-23

Datasheet:1990834 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	11.079986g
Packaging	Bulk
Series	COMBICON SPT
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Number of Positions	12
Color	Green
Number of Rows	1
Voltage - Rated	200V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	14.4mm
Reach Compliance Code	unknown
Current Rating	17.5A
Wire Gauge	16-24 AWG
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	12
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Fastening Method	SPRING LOADED
Length	43.4mm
Width	13.5mm
RoHS Status	RoHS Compliant

1990834 Product Details

1990834 Overview

There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number COMBICON SPT belongs to the COMBICON SPT Series.Further, there are features such as PA, UL 94V-0, to name only a few.There is a Through Hole mount on the part.
