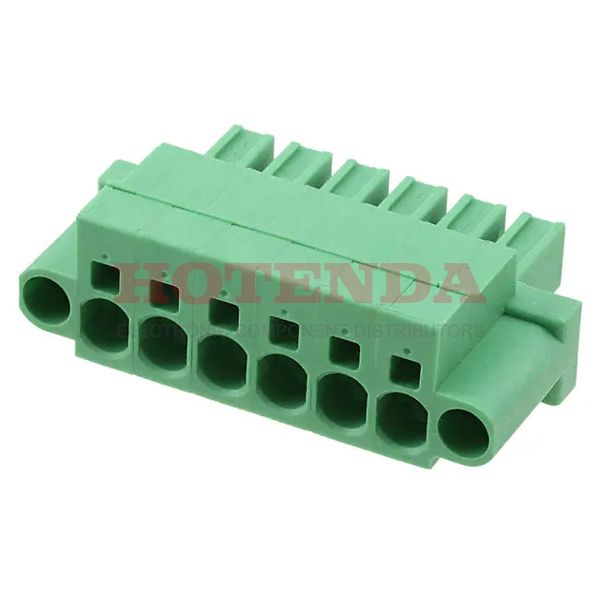

Name: 1996168
Brand: Phoenix Contact
SKU: 1996168
Price: 12.02000 USD
Availability: InStock

new

1996168

Manufacturer part number:1996168

Manufacturer:Phoenix Contact

Description:1996168 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1996168 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	400.000006g
Packaging	Bulk
Published	2010
Series	COMBICON SPC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	1kV
Additional Feature	PA, UL 94V-0
Pitch	0.300 7.62mm
Insulation Height	0.780 19.80mm
Current Rating	41A
Termination Style	Screwless - Push-In Spring
Voltage	600V
Number of Levels	1
Current	35A
Wire Gauge (Max)	8 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	8-24 AWG
Voltage - IEC	1kV
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-10mm2
Wire Strip Length	15mm
Current - IEC	41A
Number of Positions Per Level	6
Fastening Method	SPRING LOADED
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1996168 Product Details

1996168 Overview

Its mounting type is Free Hanging (In-Line).We package the product with a Bulk case.This product is in the COMBICON SPC Series.In addition, there are other features such as PA, UL 94V-0, to mention only a few.In many ways, its Mating Flange feature makes it more powerful.Mounted by Free Hanging.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
