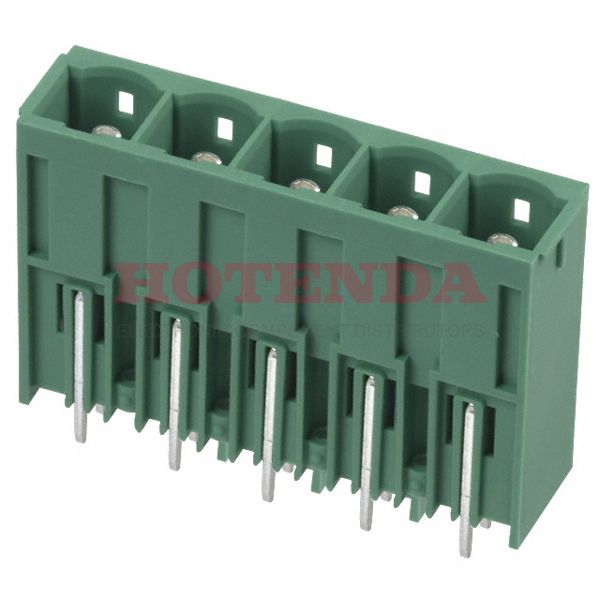

Name: 1998810
Brand: Phoenix Contact
SKU: 1998810
Price: 15.72000 USD
Availability: InStock

new

1998810

Manufacturer part number:1998810

Manufacturer:Phoenix Contact

Description:1998810 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1998810 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	20.459993g
Packaging	Bulk
Published	2010
Series	COMBICON PCV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	IDC
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	5
Color	Green
Number of Rows	1
Voltage - Rated	1kV
Pitch	0.400 10.16mm
Insulation Height	1.339 34.00mm
Current Rating	76A
Termination Style	Solder
Voltage	600V
Contact Tail Length	0.157 4.00mm
Number of Levels	1
Current	5A
Contact Mating Finish	Silver
Voltage - UL	300V
Number of Decks	1
Current - UL	66A
Number of Ways	5
Header Orientation	Vertical
Height	34mm
Width	13.4mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1998810 Product Details

1998810 Overview

This device has a mounting type of Through Hole.We use a Bulk case to package the product.This product is from the COMBICON PCV Series.It is mounted by Through Hole.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
