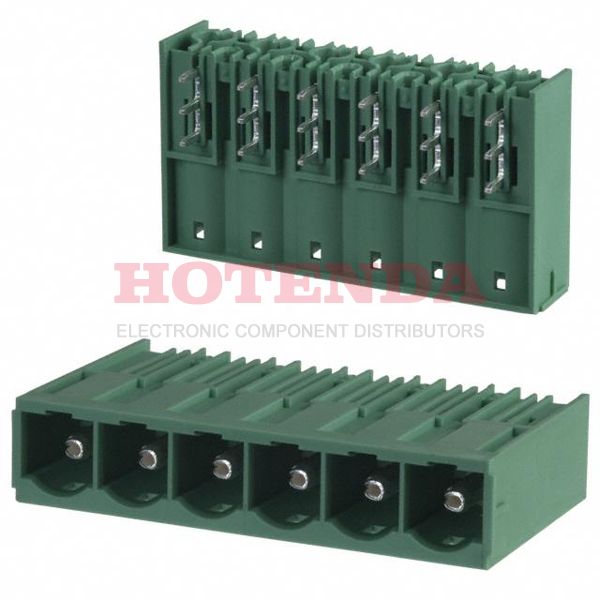

1998975

1998975

1998975

Phoenix Contact

1998975 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1998975 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 23.339992g
PackagingBulk
Published 2010
Series COMBICON PC
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Color Green
Number of Rows 1
Voltage - Rated 1kV
Pitch 0.400 10.16mm
Insulation Height 0.528 13.40mm
Current Rating76A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.157 4.00mm
Number of Levels 1
Current 5A
Contact Mating Finish Silver
Voltage - UL 300V
Number of Decks 1
Current - UL 66A
Number of Ways 6
Header Orientation 90°, Right Angle
Height 13.7mm
Width 32mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:456 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$17.270507$17.270507
10$16.292931$162.92931
100$15.370689$1537.0689
500$14.500650$7250.325
1000$13.679859$13679.859

1998975 Product Details

1998975 Overview


Through Hole indicates that the device is mounted.We pack the product in a Bulk case.As a product of the COMBICON PC Series, it can be found in this category.This part is mounted by Through Hole. It shares many benefts with other Header, Male Pins, Shrouded (4 Side) products.

1998975 Features


COMBICON PC series

1998975 Applications


There are a lot of Phoenix Contact 1998975 Terminal Blocks applications.

  • Data Technology
  • Transportation
  • Telecommunications
  • All Electrical Machinery
  • Datacom
  • Instrumentation
  • Communication
  • Medical technology
  • LED municipal outdoor and street lighting
  • Refrigeration control
