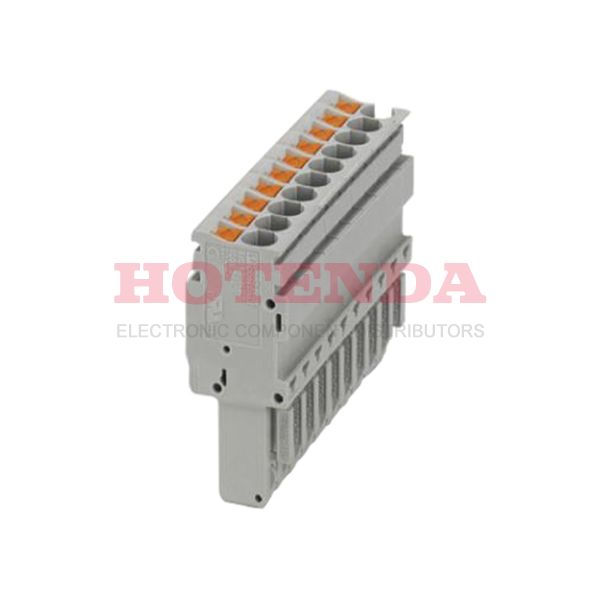

Name: 3209950
Brand: Phoenix Contact
SKU: 3209950
Price: 13.17000 USD
Availability: InStock

new

3209950

Manufacturer part number:3209950

Manufacturer:Phoenix Contact

Description:3209950 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:3209950 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2017
Series	CLIPLINE COMBI PP-H
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Push-In
Type	Plug, Female Sockets
Number of Positions	10
Color	Gray
Voltage - Rated	500V
HTS Code	8536.69.40.40
Orientation	Straight
Insulation Height	1.535 39.00mm
Current Rating	24A
Termination Style	Screwless - Push-In Spring
Number of Contacts	10
Voltage	300V
Max Current Rating	24A
Number of Levels	1
Current	20A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	26 AWG
Wire/Cable Gauge	12 AWG
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	500V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-4mm2
Wire Strip Length	10mm
Height	39mm
Length	15.8mm
Width	52mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

3209950 Product Details

3209950 Overview

Push-In packaging is included.There is a mounting type of Free Hanging (In-Line) for this device.Packaging the product involves using a Bulk case.The product is a part of the CLIPLINE COMBI PP-H Series.Mounted by Cable, Free Hanging.Other Plug, Female Sockets products share lots of benefits with this part.
