3240022 datasheet pdf and Terminals - Ring Connectors product details from Phoenix Contact stock available on our website
SOT-23
3240022 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Package / Case
100
Material - Insulation
Plastic
Packaging
Bulk
Series
CLIPLINE
Published
2011
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Color
Blue
HTS Code
8536.90.40.00
Contact Finish
Tin
Wire Gauge
14-16 AWG
Wire Gauge (Max)
16 AWG
Wire Gauge (Min)
14 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Insulated
Terminal Type
Circular
Stud/Tab Size
M3.5 Stud
Stud Size
M3.5
Length
20.6mm
Thickness
0.031 0.79mm
Length - Overall
0.811 20.60mm
Width - Outer Edges
0.260 6.60mm
RoHS Status
RoHS Compliant
Lead Free
Lead Free
In-Stock:24224 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.31000
$0.31
10
$0.29200
$2.92
50
$0.28460
$14.23
100
$0.26700
$26.7
250
$0.24684
$61.71
500
$0.22920
$114.6
3240022 Product Details
Description:

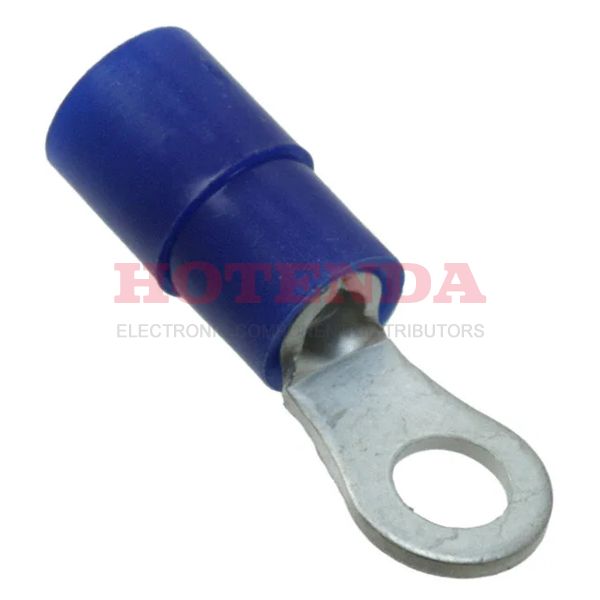

The Phoenix Contact 3240022 is a ring cable lug terminal for use with 1.5-2.5 mm2 cables. It is made of blue polyamide and has a M3.5 thread. The terminal is designed for use in electrical and electronic applications.
Features:
• Made of blue polyamide • M3.5 thread • For use with 1.5-2.5 mm2 cables • Designed for electrical and electronic applications
Applications:
The Phoenix Contact 3240022 is suitable for use in a variety of electrical and electronic applications, such as in the automotive, telecommunications, and industrial sectors. It can be used for connecting cables to electrical components, such as switches, relays, and circuit breakers.
