3240070 datasheet pdf and Terminals - Ring Connectors product details from Phoenix Contact stock available on our website
SOT-23
3240070 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Package / Case
Metal
Packaging
Bulk
Series
CLIPLINE
Published
2011
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
Contact Finish
Tin
Wire Gauge
18-20 AWG
Wire Gauge (Max)
20 AWG
Wire Gauge (Min)
18 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Non-Insulated
Thread Size
M3
Terminal Type
Circular
Stud/Tab Size
M3 Stud
Length
13.9954mm
Thickness
0.031 0.79mm
Length - Overall
0.551 14.00mm
Width - Outer Edges
0.236 6.00mm
RoHS Status
RoHS Compliant
In-Stock:52130 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.104013
$0.104013
10
$0.098126
$0.98126
100
$0.092571
$9.2571
500
$0.087331
$43.6655
1000
$0.082388
$82.388
3240070 Product Details
Description:

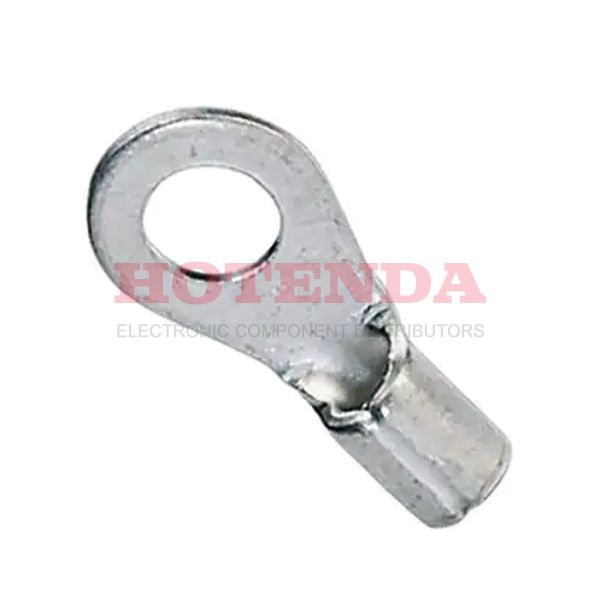

The Phoenix Contact 3240070 Ring Connectors are non-insulated terminals for cable lugs with a cross section of 0.5 - 1 mm2. They are designed for use with M3 screws and feature a secure connection with a high contact force. The terminals are made of tin-plated brass and are suitable for a wide range of applications.
Features:
• Non-insulated terminals for cable lugs with a cross section of 0.5 - 1 mm2 • Designed for use with M3 screws • Secure connection with a high contact force • Made of tin-plated brass • Suitable for a wide range of applications
Applications:
The Phoenix Contact 3240070 Ring Connectors are suitable for a wide range of applications, including industrial automation, control systems, and electrical installations. They are ideal for use in harsh environments, such as in the automotive industry, and can be used in a variety of applications, including power distribution, signal transmission, and data communication.
