3240071 datasheet pdf and Terminals - Ring Connectors product details from Phoenix Contact stock available on our website
SOT-23
3240071 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Electrolytic Copper
Contact Plating
Tin
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Packaging
Bulk
Series
CLIPLINE
Published
2011
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
Color
Red
Contact Finish
Tin
Wire Gauge
18-20 AWG
Wire Gauge (Max)
20 AWG
Wire Gauge (Min)
18 AWG
Insulation
Non-Insulated
Terminal Type
Circular
Stud/Tab Size
M3.5 Stud
Length
13.9954mm
Thickness
0.031 0.79mm
Length - Overall
0.551 14.00mm
Width - Outer Edges
0.236 6.00mm
RoHS Status
RoHS Compliant
In-Stock:46792 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.14000
$0.14
10
$0.13400
$1.34
50
$0.13020
$6.51
100
$0.12210
$12.21
250
$0.11288
$28.22
500
$0.10478
$52.39

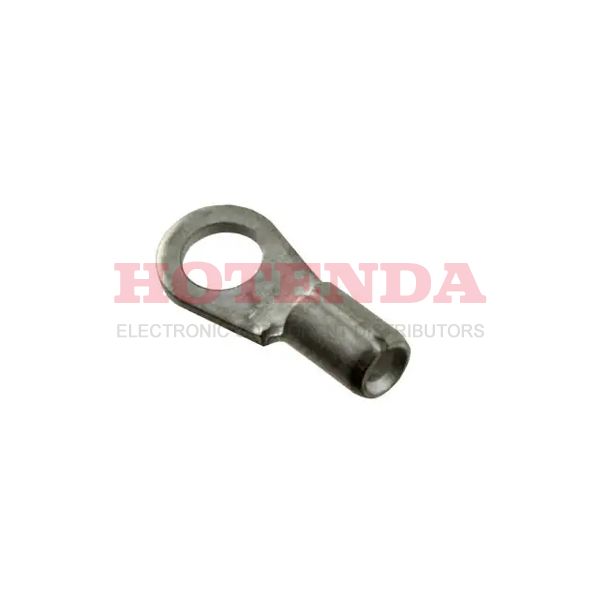

3240071 Product Details
Description:
The Phoenix Contact 3240071 is a ring connector for 18-20 AWG cables with a M3.5 thread. It is a reliable and secure connection for a wide range of applications. The connector is made of high-quality materials and is designed for easy installation and maintenance.
Features:
• Reliable and secure connection • Suitable for 18-20 AWG cables • M3.5 thread • High-quality materials • Easy installation and maintenance
Applications:
The Phoenix Contact 3240071 is suitable for a wide range of applications, including industrial automation, machine building, and control systems. It is also suitable for use in the automotive, aerospace, and medical industries.
