3240078 datasheet pdf and Terminals - Ring Connectors product details from Phoenix Contact stock available on our website
SOT-23
3240078 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Electrolytic Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Package / Case
Metal
Body Material
Copper
Packaging
Bulk
Series
CLIPLINE
Published
2011
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
HTS Code
8536.90.40.00
Depth
8mm
Reach Compliance Code
unknown
Contact Finish
Tin
Wire Gauge
14-18 AWG
Wire Gauge (Max)
18 AWG
Wire Gauge (Min)
14 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Non-Insulated
Thread Size
M4
Terminal Type
Circular
Wire Cross Section
2.5 mm2
Stud/Tab Size
M4 Stud
Length
16.002mm
Thickness
0.031 0.79mm
Length - Overall
0.630 16.00mm
Width - Outer Edges
0.315 8.00mm
RoHS Status
RoHS Compliant
In-Stock:39318 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.15000
$0.15
10
$0.14700
$1.47
50
$0.14260
$7.13
100
$0.13380
$13.38
250
$0.12372
$30.93
500
$0.11490
$57.45

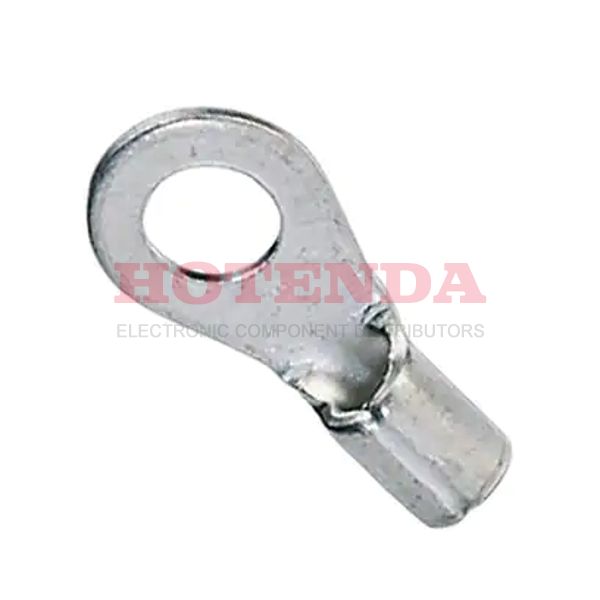

3240078 Product Details
The Phoenix Contact 3240078 Ring Connectors are a reliable and durable solution for connecting cables with a cross section of 1.1 to 2.5 mm2. These terminals are made from high-quality materials and feature a non-insulated design. The M4 thread ensures a secure connection and the terminals are suitable for a wide range of applications. The Phoenix Contact 3240078 Ring Connectors are a great choice for anyone looking for a reliable and easy to use connection solution.
