3240080 datasheet pdf and Terminals - Ring Connectors product details from Phoenix Contact stock available on our website
SOT-23
3240080 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Electrolytic Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Package / Case
Metal
Body Material
Copper
Packaging
Bulk
Series
CLIPLINE
Published
2011
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
HTS Code
8536.90.40.00
Depth
11mm
Reach Compliance Code
unknown
Contact Finish
Tin
Wire Gauge
14-18 AWG
Wire Gauge (Max)
18 AWG
Wire Gauge (Min)
14 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Non-Insulated
Thread Size
M6
Terminal Type
Circular
Wire Cross Section
2.5 mm2
Stud/Tab Size
M6 Stud
Length
21.4884mm
Thickness
0.031 0.79mm
Length - Overall
0.846 21.50mm
Width - Outer Edges
0.433 11.00mm
RoHS Status
RoHS Compliant
In-Stock:29500 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.145260
$0.14526
10
$0.137038
$1.37038
100
$0.129281
$12.9281
500
$0.121963
$60.9815
1000
$0.115060
$115.06
3240080 Product Details

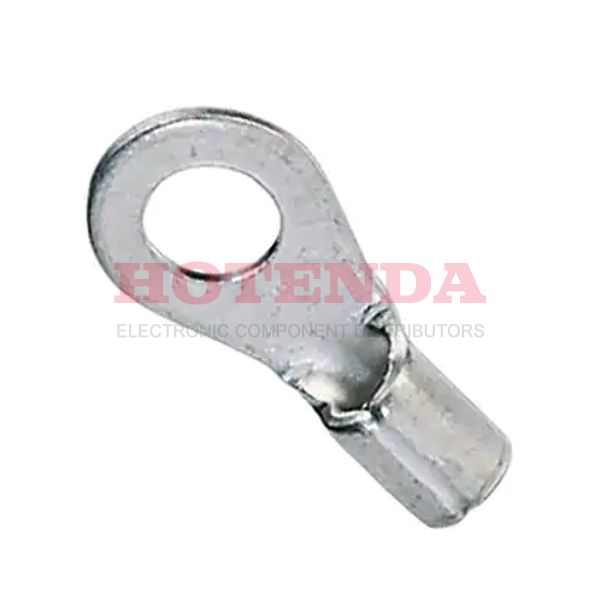

The Phoenix Contact 3240080 Ring Connectors are a reliable and durable solution for connecting cables with a cross section of 1.1 to 2.5 mm2. These terminals feature a non-insulated design and a M6 thread size, making them ideal for a variety of applications. The terminals are made from high-quality materials and are designed to withstand harsh environmental conditions. They are easy to install and provide a secure connection for your cables. The Phoenix Contact 3240080 Ring Connectors are a great choice for any application that requires a reliable and durable connection.
