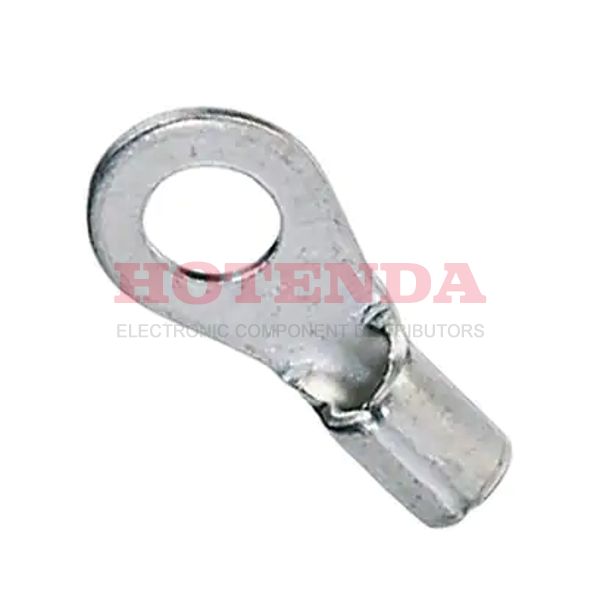

3240082 datasheet pdf and Terminals - Ring Connectors product details from Phoenix Contact stock available on our website
SOT-23
3240082 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Electrolytic Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Package / Case
Metal
Packaging
Bulk
Series
CLIPLINE
Published
2011
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
HTS Code
8536.90.40.00
Contact Finish
Tin
Wire Gauge
14-18 AWG
Wire Gauge (Max)
18 AWG
Wire Gauge (Min)
14 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Non-Insulated
Thread Size
M10
Terminal Type
Circular
Stud/Tab Size
M10 Stud
Length
25.4mm
Thickness
0.031 0.79mm
Length - Overall
1.000 25.40mm
Width - Outer Edges
0.551 14.00mm
RoHS Status
RoHS Compliant
In-Stock:16359 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.49000
$0.49
10
$0.47300
$4.73
50
$0.46080
$23.04
100
$0.43210
$43.21
250
$0.39932
$99.83
500
$0.37064
$185.32
3240082 Product Details
Description:
The Phoenix Contact 3240082 Ring Connectors are non-insulated terminals for cable lugs with a cross section of 1.1 - 2.5 mm2. The terminals are designed for use with M10 screws and feature a secure connection with a high contact force.
Features:
• Non-insulated terminals for cable lugs with a cross section of 1.1 - 2.5 mm2
• Designed for use with M10 screws
• Secure connection with a high contact force
• Easy to install and remove
• High quality and reliable
Applications:
The Phoenix Contact 3240082 Ring Connectors are suitable for a wide range of applications, including industrial automation, machine building, and control cabinet construction. They are ideal for connecting cables to control panels, motors, and other electrical components.
